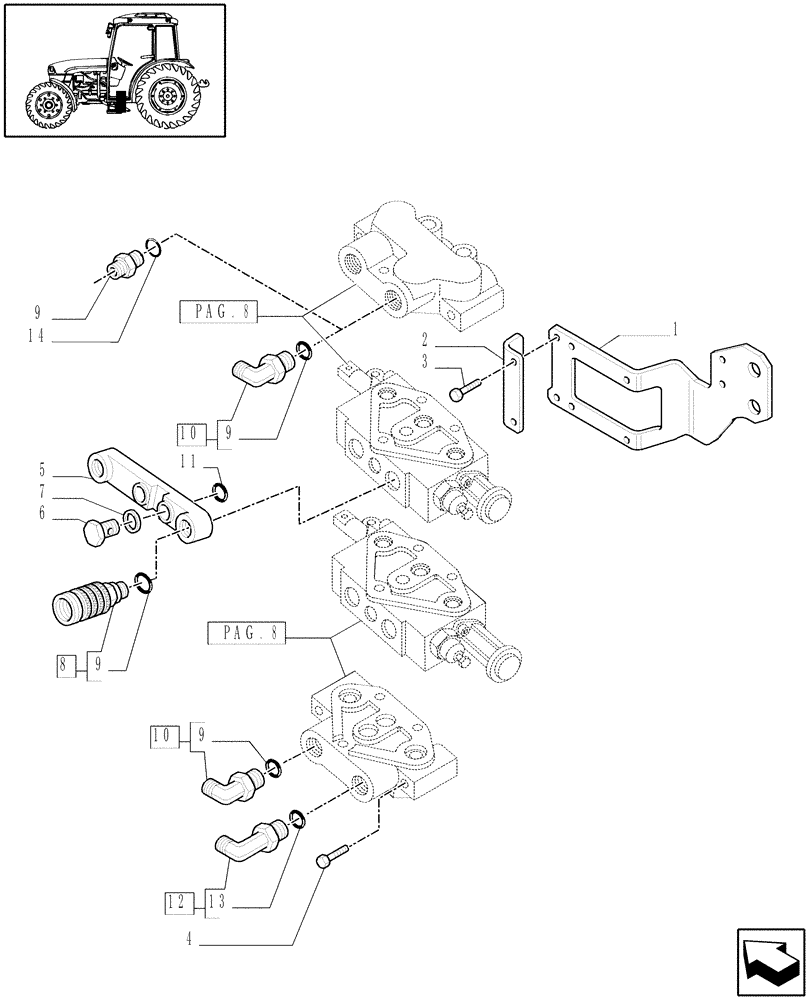

Запчасти Case IH JX1075C (1.82.7/08[13]) - (VAR.591) 4 FAST CONNECTORS FOR MID-MOUNT REMOTES - QUICK COUPLING - D5484 (07) - HYDRAULIC SYSTEM

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5185533

HYD CONNECTOR

2шт.

6

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

8

5179557

COUPLING, QUICK, FEM

2,4 x 19,3, include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

7шт.

10

5148919

ELBOW

M22x1.5, 1-1/16-12

2шт.

11

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

12

47128049

HYD CONNECTOR

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1,5

1шт.
