(0.30.5/01) - PIPING - ENGINE OIL

Запчасти Case IH JX1075C (0.30.5/01) - PIPING - ENGINE OIL (01) - ENGINE

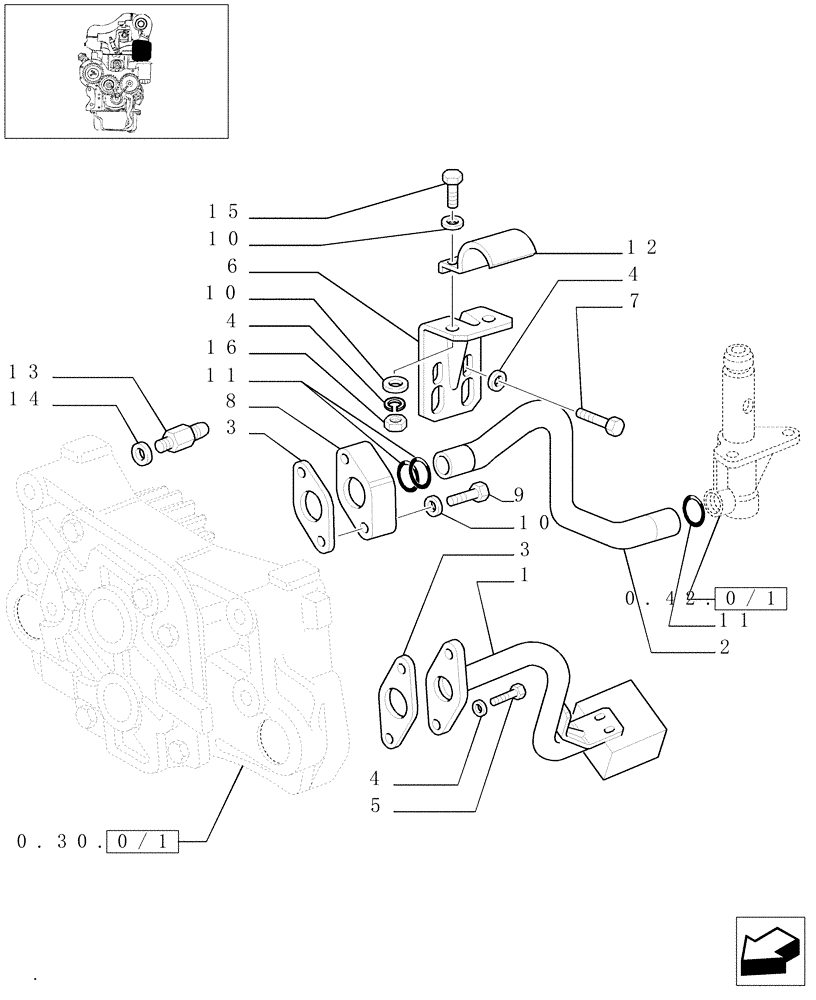

Схема запчастей Case IH JX1075C - (0.30.5/01) - PIPING - ENGINE OIL (01) - ENGINE
16
5
15
4
11
10
11
4
6
2
3
4
3
1
0.30.0/1
10
10
9
13
8
12
0.42.0/1
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

99460958

RIGID TUBE

1шт.

2

99465109

RIGID TUBE

1шт.

3

4852561

GASKET,0.8mm Thk

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

6

4775923

BRACKET

1шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

8

4773265

HYD CONNECTOR

1шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

6шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

3шт.

12

4777690

HOSE CLIP

1шт.

13

4785501

HYD CONNECTOR,M10 x 1.25

1шт.

14

561293

O-RING,12mm OD x 2.5mm Width

1шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

89628098

LOCK NUT

M8

2шт.

Выбрано товаров: 16
