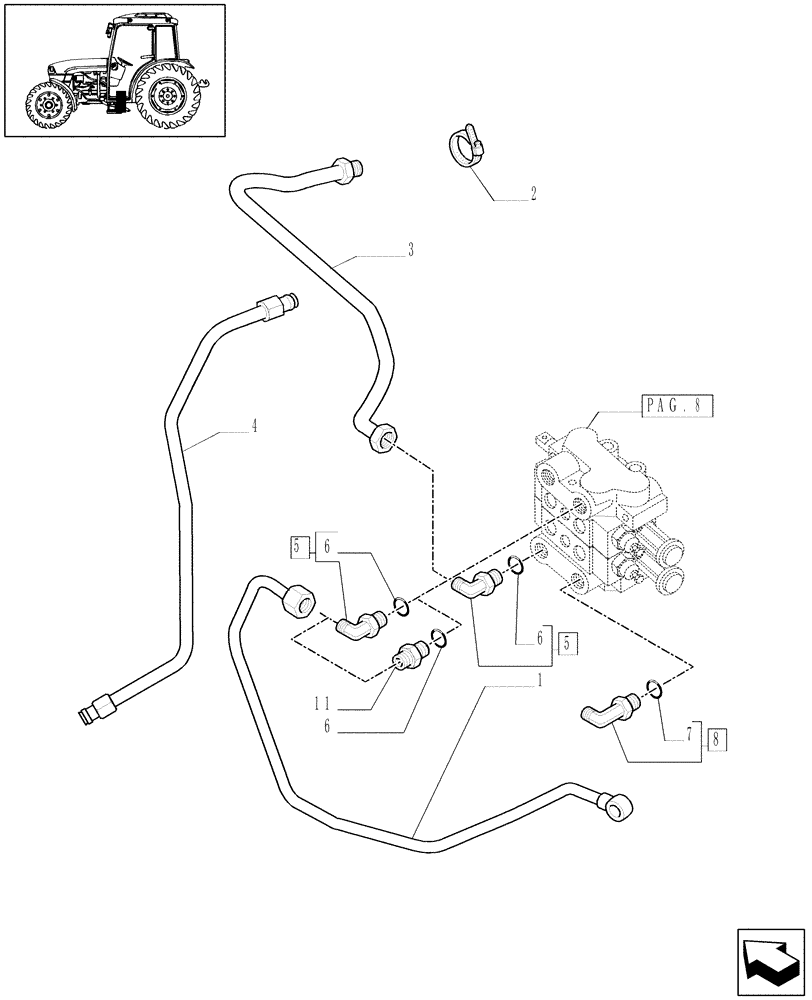

Запчасти Case IH JX1075C (1.82.7/08[10]) - (VAR.124) 2 CONTROL VALVES WITH JOYSTICK - D5484 (07) - HYDRAULIC SYSTEM

1

87325188

TUBE

Delivery

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

3

47126969

RIGID TUBE

1шт.

4

47130285

RIGID TUBE

Return

1шт.

5

5148919

ELBOW

M22x1.5, 1-1/16-12

2шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

47128049

HYD CONNECTOR

1шт.

9

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1,5

1шт.
