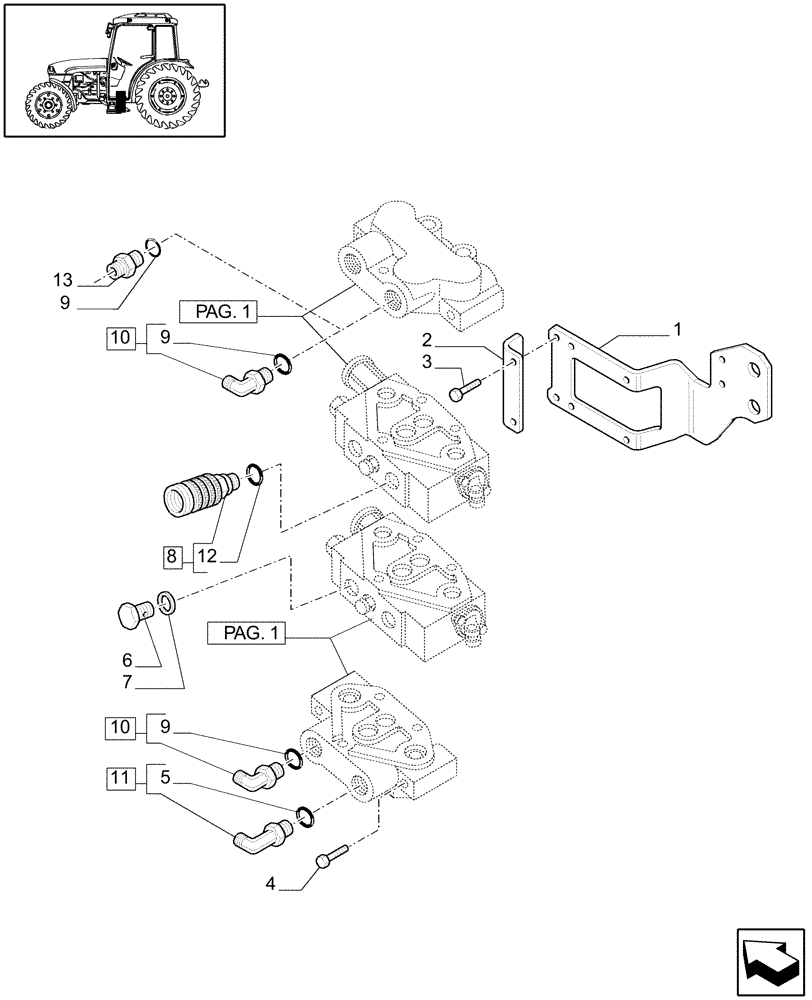

Запчасти Case IH JX1075C (1.82.7/08[07]) - (VAR.591) 2 FAST CONNECTORS FOR MID-MOUNT REMOTES - QUICK COUPLING - C5484 (07) - HYDRAULIC SYSTEM

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

10300840

PLUG

2шт.

7

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2.4x15.3

2шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

2,4 x 19,3, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

10

5148919

ELBOW

M22x1.5, 1-1/16-12

2шт.

Qty. 1 After Date 27/06/05

1шт.

11

47128049

HYD CONNECTOR

1шт.

12

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

13

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1,5, Start Serial: D5122

1шт.
