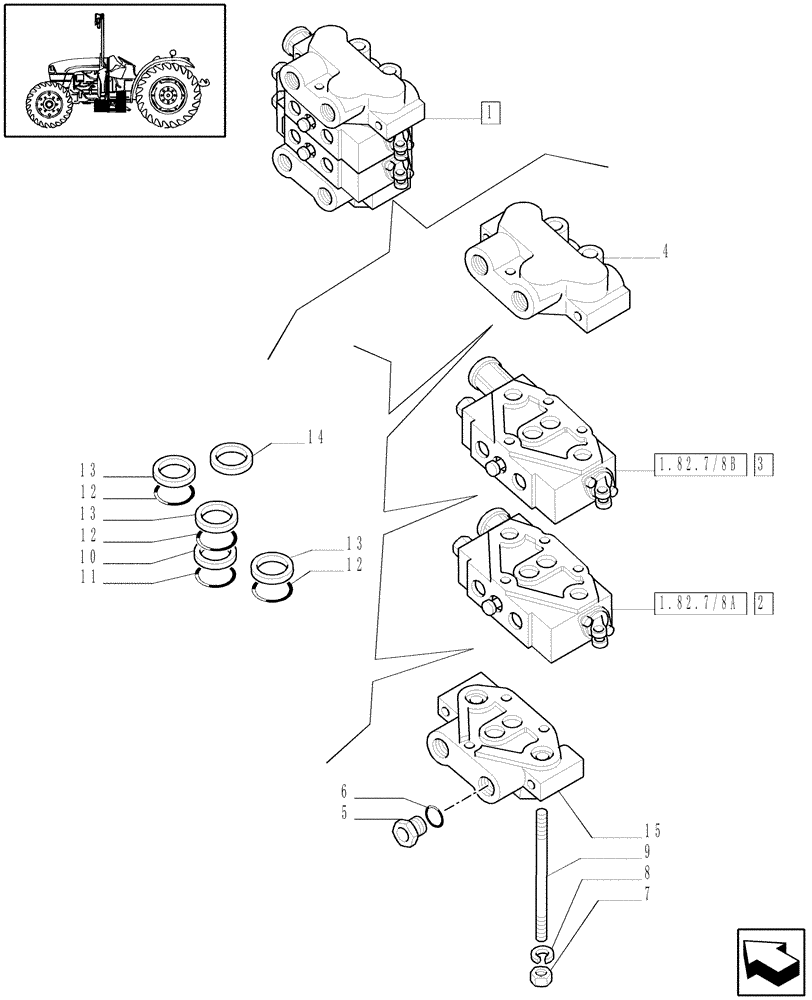

Запчасти Case IH JX1075C (1.82.7/08[01]) - (VAR.124-125-157-159-591-592) 2 CONTROL VALVES WITH JOYSTICK - C5484 (07) - HYDRAULIC SYSTEM

1

47128730

CONTROL VALVE

1шт.

2

5161780

CONTROL VALVE

1шт.

3

5180686

CONTROL VALVE

Assy., W/Float

1шт.

4

5149119

COVER

Has counterbore on three large holes

1шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5116857

NUT,3/8" - 24

6шт.

8

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

M10

3шт.

9

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

10

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

19.2x20.2x2.3

3шт.

11

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

12

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

13

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

17x18.5x2.1

9шт.

14

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

24x25x2.3

3шт.

15

5149118

COVER

1шт.
