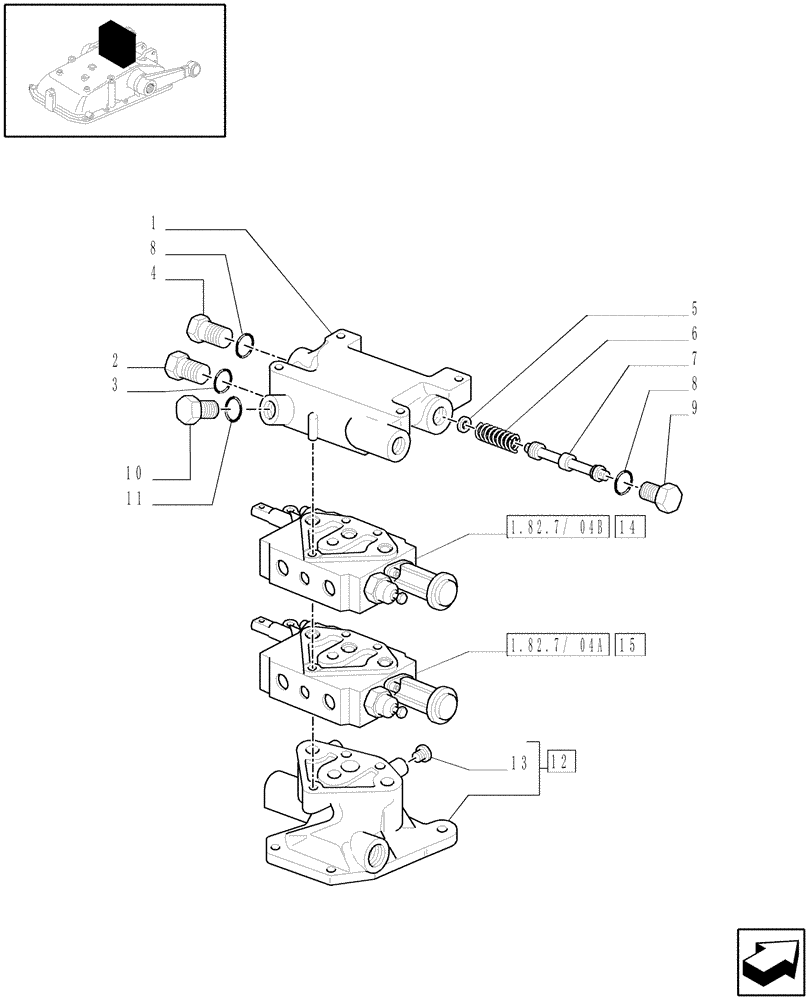

Запчасти Case IH JX1075C (1.82.7/05[04]) - (VAR.028) 2 REMOTE VALVES FOR MID-MOUNT AND EDC - CAPS AND FLANGE - D5484 (07) - HYDRAULIC SYSTEM

1

87374218

FLANGE

INCL. REF. 2-11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

10269650

PLUG

1шт.

14

87374242

CONTROL VALVE

1шт.

15

87396837

CONTROL VALVE

1шт.
