(1.82.7/04[04]) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES - D5484

Запчасти Case IH JX1075C (1.82.7/04[04]) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM

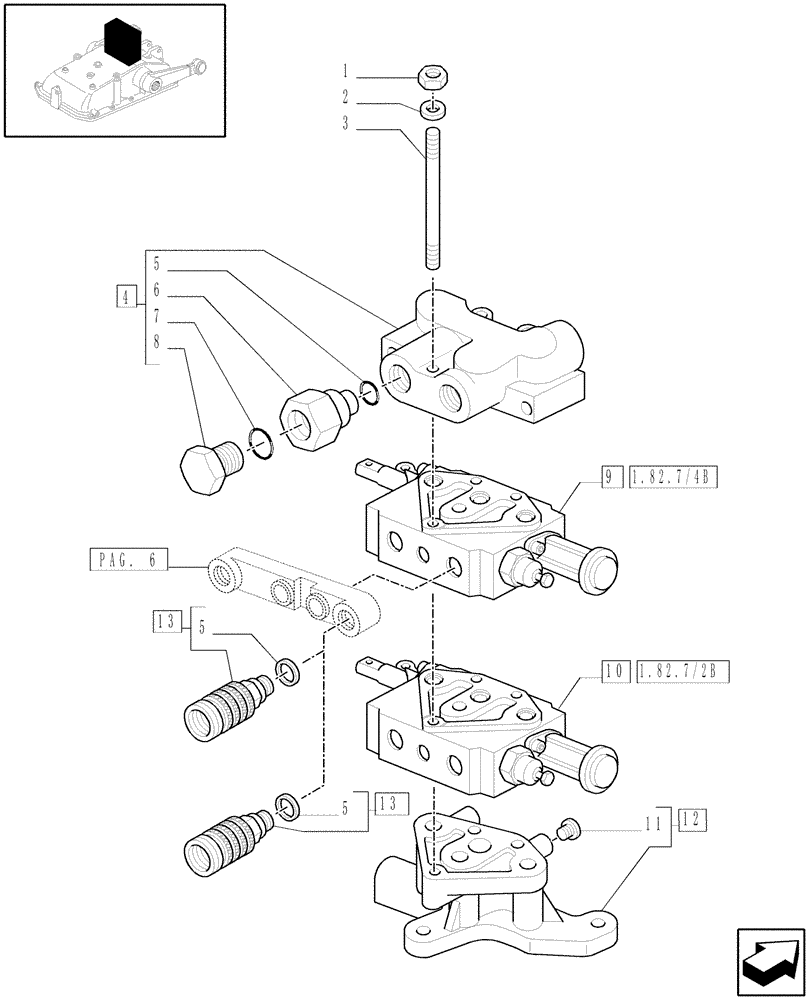

Схема запчастей Case IH JX1075C - (1.82.7/04[04]) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM
8
5
1.82.7/4b
4
5
12
3
13
pag. 6
13
5
2
1.82.7/2b
9
7
6
11
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

DIA.MM.10

3шт.

3

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

4

87397264

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87374242

CONTROL VALVE

ASSY

1шт.

10

87396837

CONTROL VALVE

ASSY

1шт.

11

10269650

PLUG

M16

1шт.

12

5176800

FLANGE

1шт.

13

5179557

COUPLING, QUICK, FEM

STND., include p/n 1534623C1

1шт.

1534623C1

SEAL KIT

1шт.
