(1.82.7/02[04]) - (VAR.025) 1 REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS - D5484

Запчасти Case IH JX1075C (1.82.7/02[04]) - (VAR.025) 1 REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS - D5484 (07) - HYDRAULIC SYSTEM

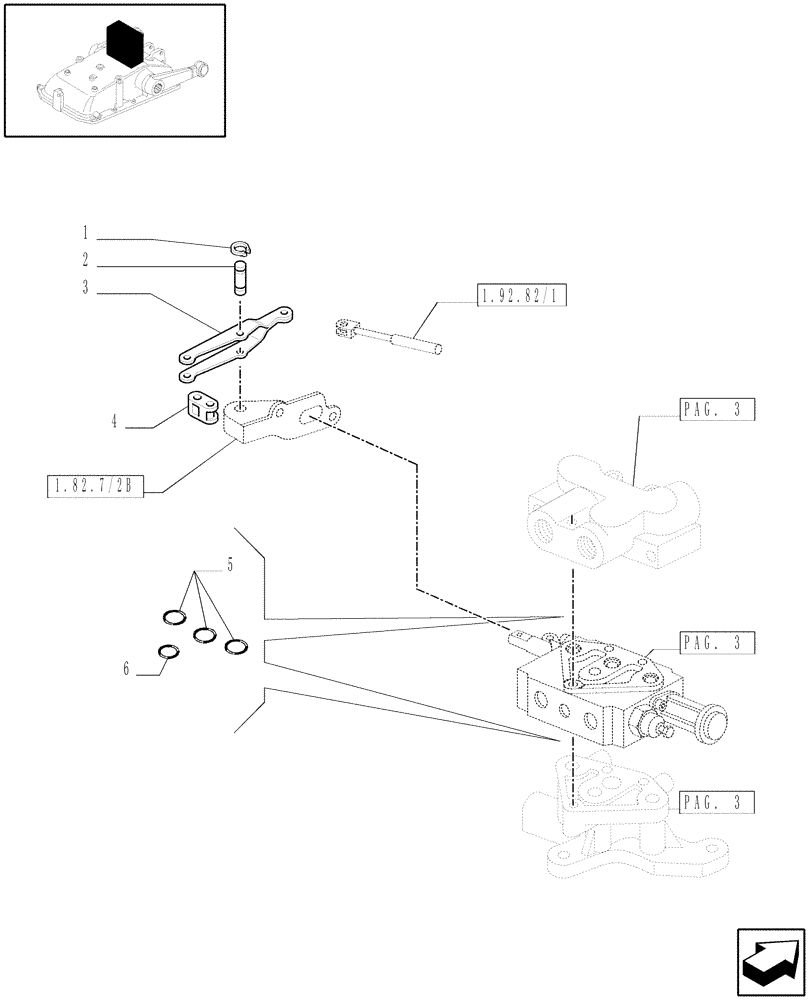

Схема запчастей Case IH JX1075C - (1.82.7/02[04]) - (VAR.025) 1 REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS - D5484 (07) - HYDRAULIC SYSTEM
2
5
pag. 3
6
1.82.7/2b
3
4
1
pag. 3
pag. 3
1.92.82/1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5178183

CLEVIS

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING DIA.MM.19.2

2шт.
