Запчасти Case IH JX1075C (1.82.7/01[03]) - (VAR.126-127) ELECTRONIC LIFT - QUICK COUPLING (07) - HYDRAULIC SYSTEM

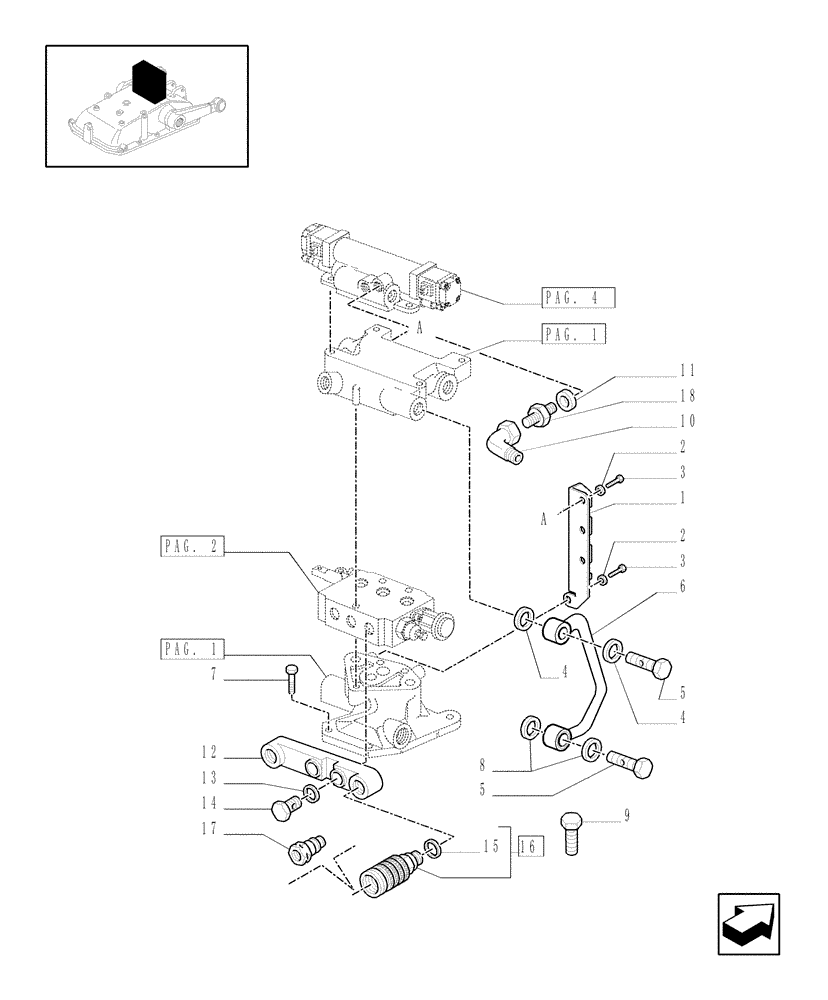

Схема запчастей Case IH JX1075C - (1.82.7/01[03]) - (VAR.126-127) ELECTRONIC LIFT - QUICK COUPLING (07) - HYDRAULIC SYSTEM
9
12
3
3
1
a
2
11
pag. 2
17
10
15
2
4
5
7
a
16
4
8
13
6
5
pag. 1
14
18
pag. 1
pag. 4

Артикул

Название

Примечание

Количество

1

5178435

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

5

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18

2шт.

6

47131237

RIGID TUBE

UNLOAD

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

5шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

16290124

SCREW,M12 x 1.25 x 45mm, Cl 8.8

M12x1.25x45

1шт.

10

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

11

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

12

5185533

HYD CONNECTOR

1шт.

13

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

16

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

17

5174040

RIGID TUBE

1шт.

18

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1/2"-20

1шт.

19

80216773

ELBOW

1/4", 37

1шт.

Выбрано товаров: 21
