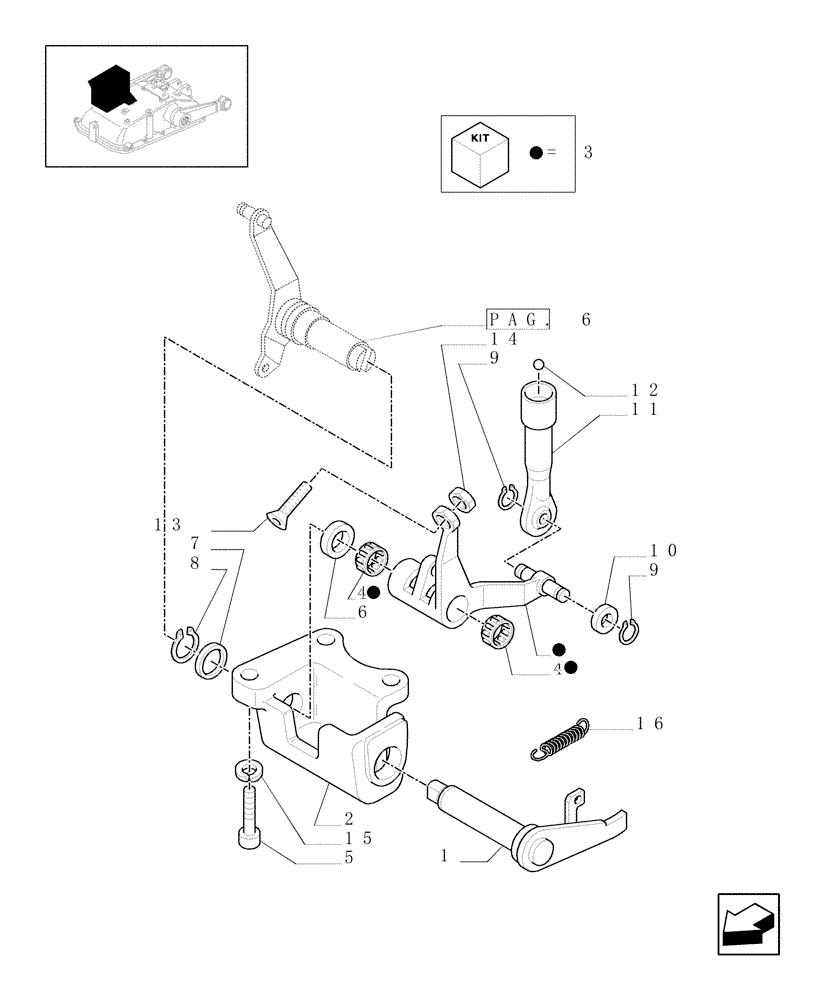

Запчасти Case IH JX1075C (1.82.5[05]) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

5177261

LEVER

1шт.

2

5173366

SUPPORT

1шт.

3

5175907

LEVER

ASSY

1шт.

4

4964519

ROLLER BEARING,Needle, 18mm ID x 16mm OD x 10.5mm W

2шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

6

5173393

SPACER,12.5mm ID x 17mm OD x 5.5mm L

1шт.

7

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

8

11066076

SNAP RING,M12, Ext

1шт.

9

89990741

SNAP RING

2шт.

10

5111028

ROLLER,18mm OD x 10mm L

1шт.

11

5176628

BALL JOINT HEAD

1шт.

12

20419300

BALL,5.56mm OD, Gr 100

1шт.

13

13791321

SET SCREW,Hex Skt, M8 x 50mm, Flat Pt

1шт.

14

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

15

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

3шт.

16

5176629

SPRING,Extension, 16mm OD x 51mm L

1шт.
