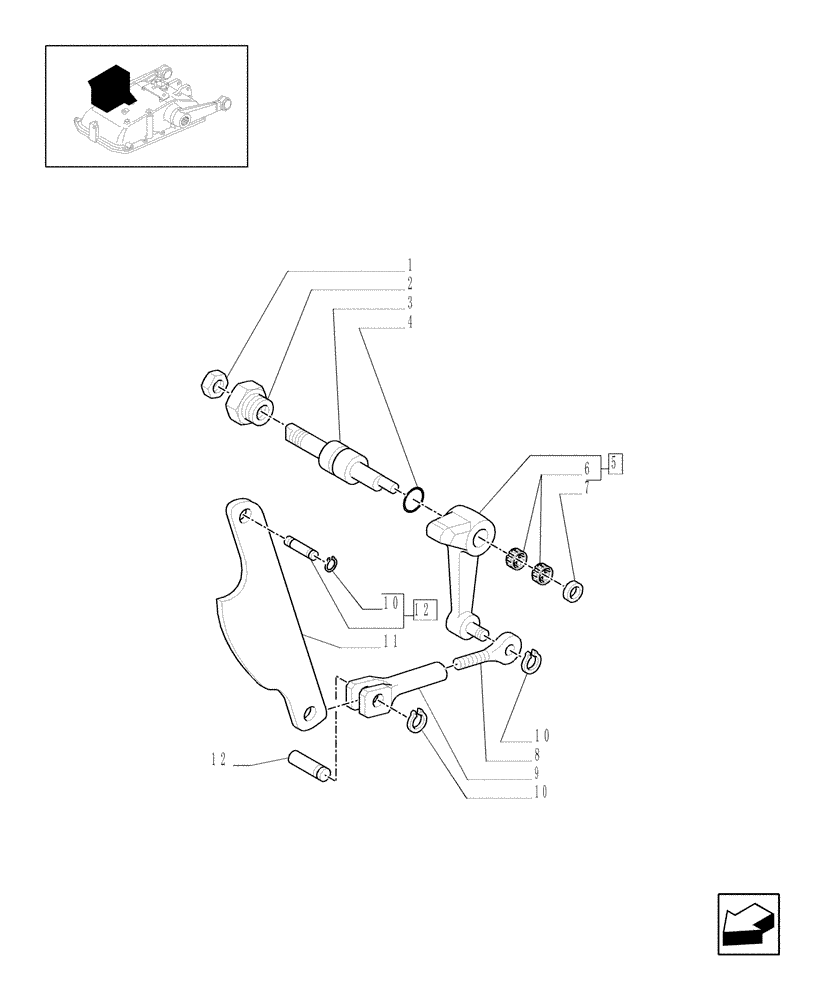

Запчасти Case IH JX1075C (1.82.5[03]) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

2

5146379

RING NUT,Hex, M24 x 2, 24mm Thd

1шт.

3

5173467

PIN,20mm OD x 110mm L

1шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

5

5193911

LEVER

ASSY

1шт.

6

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

2шт.

7

5143634

SPACER,11.2mm ID x 19mm OD x 5mmL

1шт.

8

5136355

TIE-ROD,M8 x 1, 48mm L

1шт.

9

5173352

CLEVIS,M8 x 1

1шт.

10

89990741

SNAP RING

5шт.

11

5122497

LEVER

1шт.

12

5113008

PIN,8mm OD x 26mm L

ASSY

2шт.
