Запчасти Case IH JX1075C (1.82.4[04]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN (07) - HYDRAULIC SYSTEM

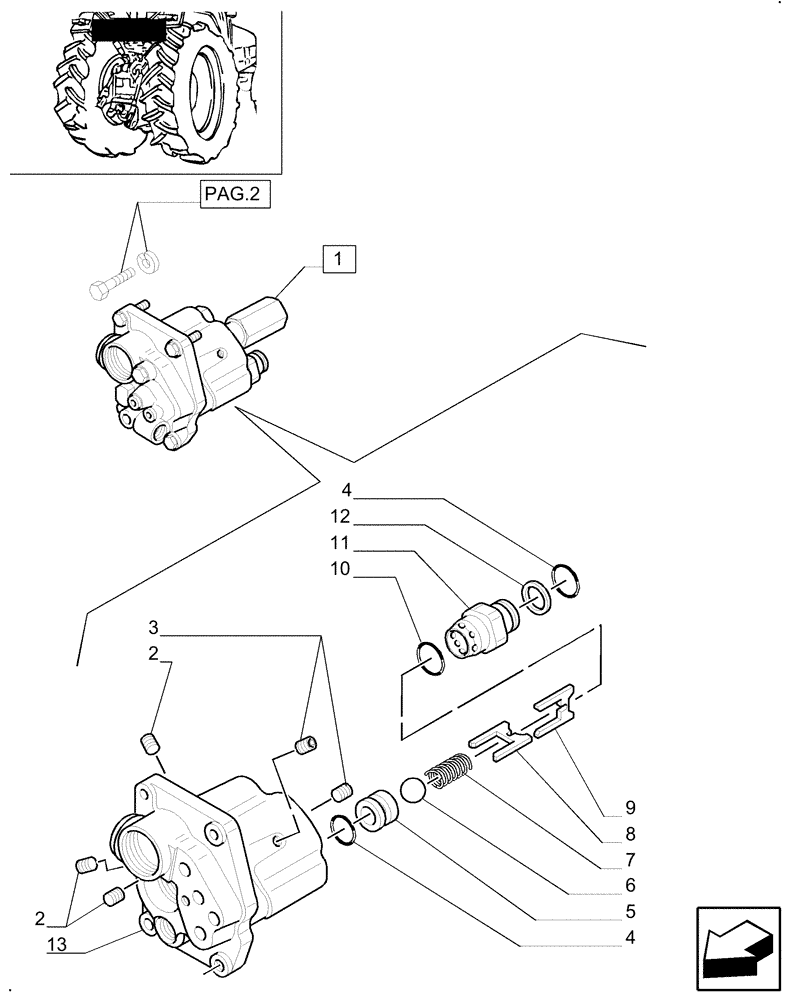

Схема запчастей Case IH JX1075C - (1.82.4[04]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN (07) - HYDRAULIC SYSTEM
5
8
4
3
2
6
11
9
2
12
1
pag.2
10
7
13
4

Артикул

Название

Примечание

Количество

1

47124174

CONTROL VALVE

ASSY

1шт.

84277583R

REMAN-HYD VALVE

JX1070C, JX1075C, JX1060C ALL (12/03), Reman For New P/N 47124174

1шт.

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

10269150

PLUG,M6 x 1 x 60mm L

M6

3шт.

3

5162458

PLUG,M10 x 1.25

M10

2шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

5

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

6

20063580

BALL,13.49mm OD, Gr 100

1шт.

7

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

8

5148907

SPACER,3mm Thk

1шт.

9

5148905

SPACER,3mm Thk

1шт.

10

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

11

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

12

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

13

5170596

BODY

INCL. REF. 2,3

1шт.

Выбрано товаров: 15
