(1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT

Запчасти Case IH JX1075C (1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (07) - HYDRAULIC SYSTEM

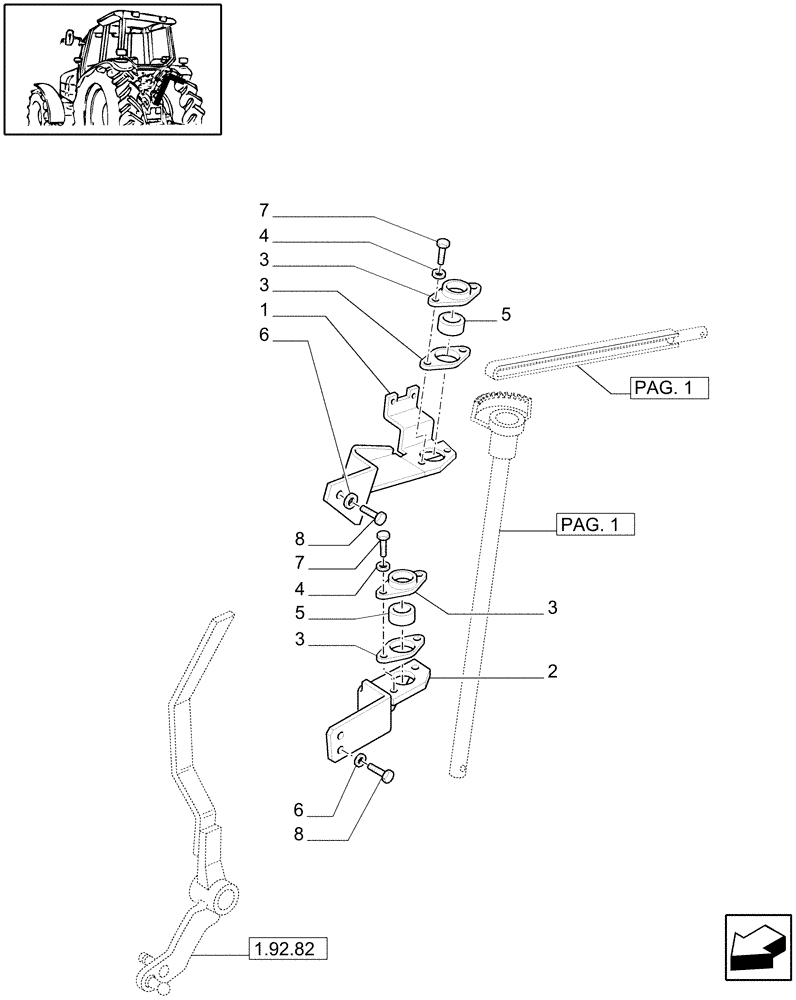

Схема запчастей Case IH JX1075C - (1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (07) - HYDRAULIC SYSTEM
3
8
6
3
6
1
3
2
7
3
1.92.82
5
7
pag. 1
4
5
8
pag. 1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177514

SUPPORT

UPPER, W/CAB

1шт.

1

5179584

SUPPORT

UPPER, L/CAB

1шт.

2

5177517

SUPPORT

LOWER, W/CAB

1шт.

2

5179583

SUPPORT

LOWER, L/CAB

1шт.

3

5110722

CUP

4шт.

4

10516474

LOCK WASHER

4шт.

5

5127536

BUSHING,20.5mm ID x 32mm OD

4шт.

6

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
