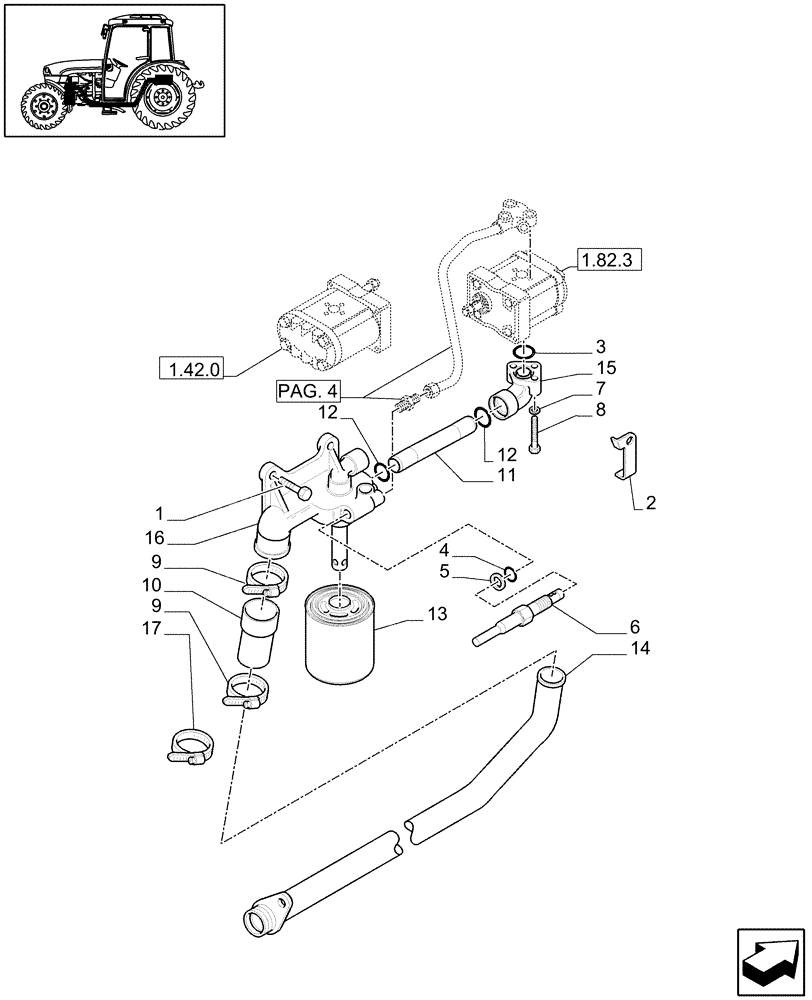

Запчасти Case IH JX1075C (1.82.1[03]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

89824642

BOLT

M12x35

2шт.

2

5180008

BRACKET

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

5

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

6

47128782

VALVE PRESSURE RELIE

Incl. 4

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

14306724

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

8

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

8

14302224

HEX SOC SCREW,M8 x 1.25 x 55mm, Cl 8.8, Full Thd

2шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D=50-70

2шт.

10

5178545

HOSE

1шт.

11

5180627

RIGID TUBE

1шт.

12

14463681

O-RING,31.34mm ID x 3.53" Width

2шт.

13

84257511

HYDRAULIC OIL FILTER,138.00mm OD

1шт.

14

5180566

RIGID TUBE

1шт.

15

87316772

HYD CONNECTOR

1шт.

16

5180403

SUPPORT

1шт.

17

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.
