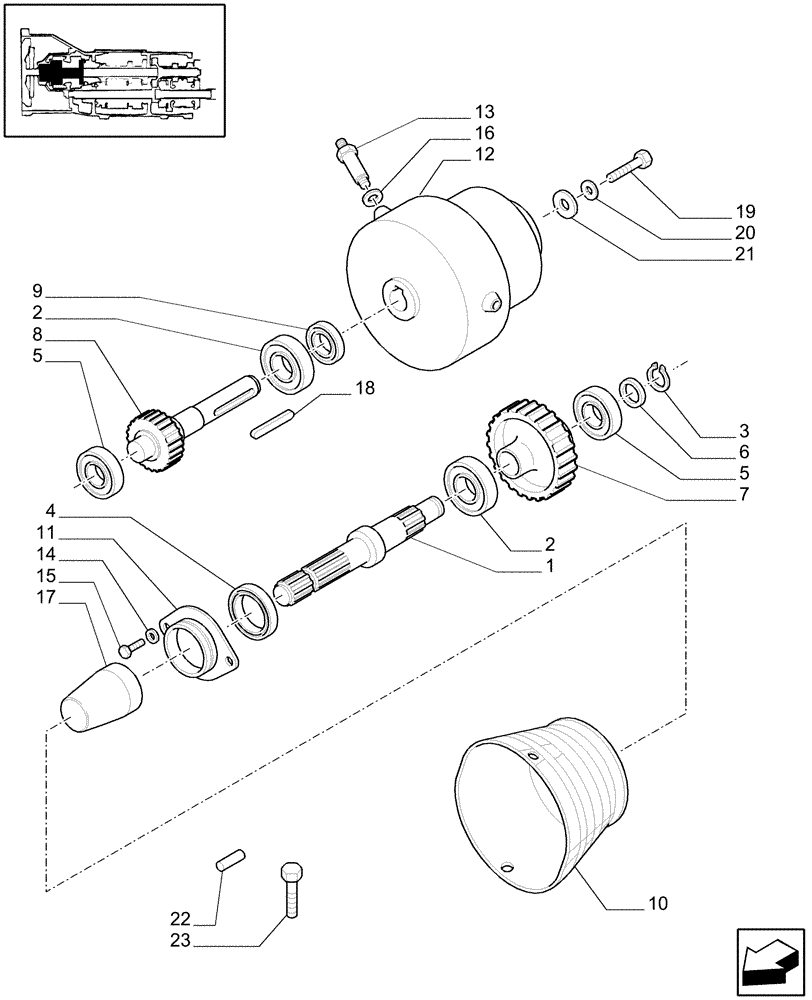

Запчасти Case IH JX1075C (1.80.5/01[02]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - POWER TAKE-OFF (07) - HYDRAULIC SYSTEM

1

47123221

SHAFT

1шт.

2

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

2шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

4

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8

1шт.

5

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35x72x17

2шт.

6

47123223

SPACER

1шт.

7

47123222

GEAR

1шт.

8

47123218

GEAR

1шт.

9

5124207

SEAL

40x72x7

1шт.

10

47056296

GUARD

1шт.

11

47132445

SHIELD

1шт.

12

47057466

CLUTCH

1шт.

13

47056964

SCREW

M14x1.5

1шт.

14

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

5165104

COVER

1шт.

18

10621410

KEY

10x8x70

1шт.

19

11114324

BOLT,Hex, M12 x 105mm, Cl 8.8

1шт.

20

47057469

RING

D=12

1шт.

21

47057143

WASHER

1шт.

22

5174376

DOWEL,M16 x 30

16x30

2шт.

23

15224121

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.
