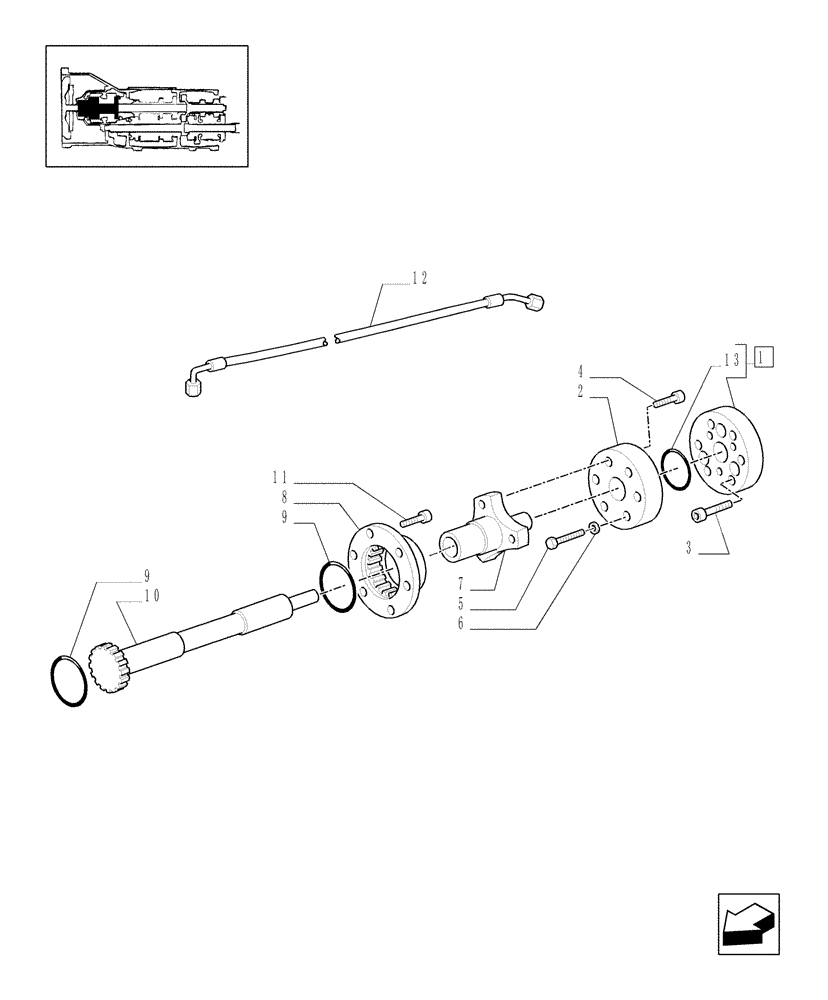

Запчасти Case IH JX1075C (1.80.5[03]) - (VAR.838-839) FRONT PTO LIFT (07) - HYDRAULIC SYSTEM

1

47056266

FLANGE

1шт.

2

47056267

DAMPER

1шт.

3

14308134

SCREW,M10 x 1.25 x 60mm, Cl 10.9

M10x60

6шт.

4

14422431

HEX SOC SCREW,M12 x 1.75 x 50mm, Cl 10.9, Full Thd

3шт.

5

15215731

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

3шт.

6

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12 x 24 x 2.5 mm

3шт.

7

47056268

FLANGE

1шт.

8

47056270

FLANGE

1шт.

9

47056295

O-RING,5.7mm Thk x 47.2mm ID, 70 Duro

47.2x5.7

2шт.

10

47056269

SHAFT

1шт.

11

14306434

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

12

47056860

FLEXIBLE HOSE

1шт.

13

47056290

RING

1шт.
