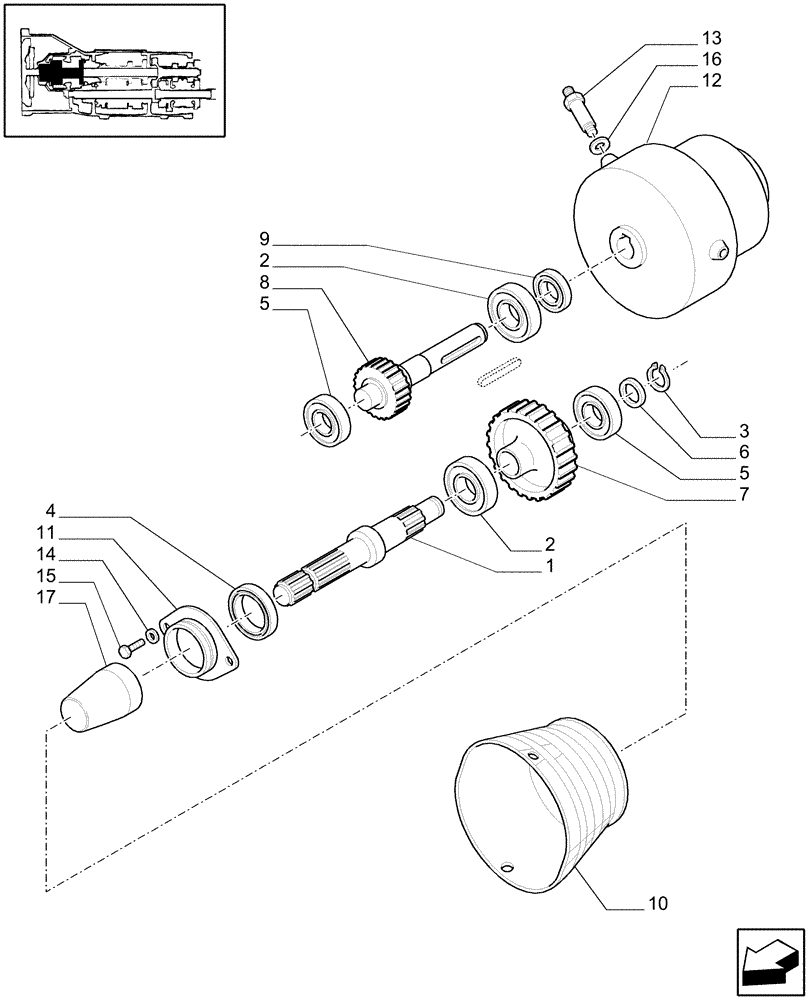

Запчасти Case IH JX1075C (1.80.5[02]) - (VAR.838-839) FRONT PTO LIFT - POWER TAKE-OFF (07) - HYDRAULIC SYSTEM

1

47123221

SHAFT

1шт.

2

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

2шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

4

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

5

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

2шт.

6

47123223

SPACER

1шт.

7

47123222

GEAR

1шт.

8

47123218

GEAR

1шт.

9

5124207

SEAL

40x72x7

1шт.

10

47056296

GUARD

1шт.

11

47132445

SHIELD

1шт.

12

47057466

CLUTCH

1шт.

13

47056964

SCREW

1шт.

14

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

15

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

5165104

COVER

1шт.
