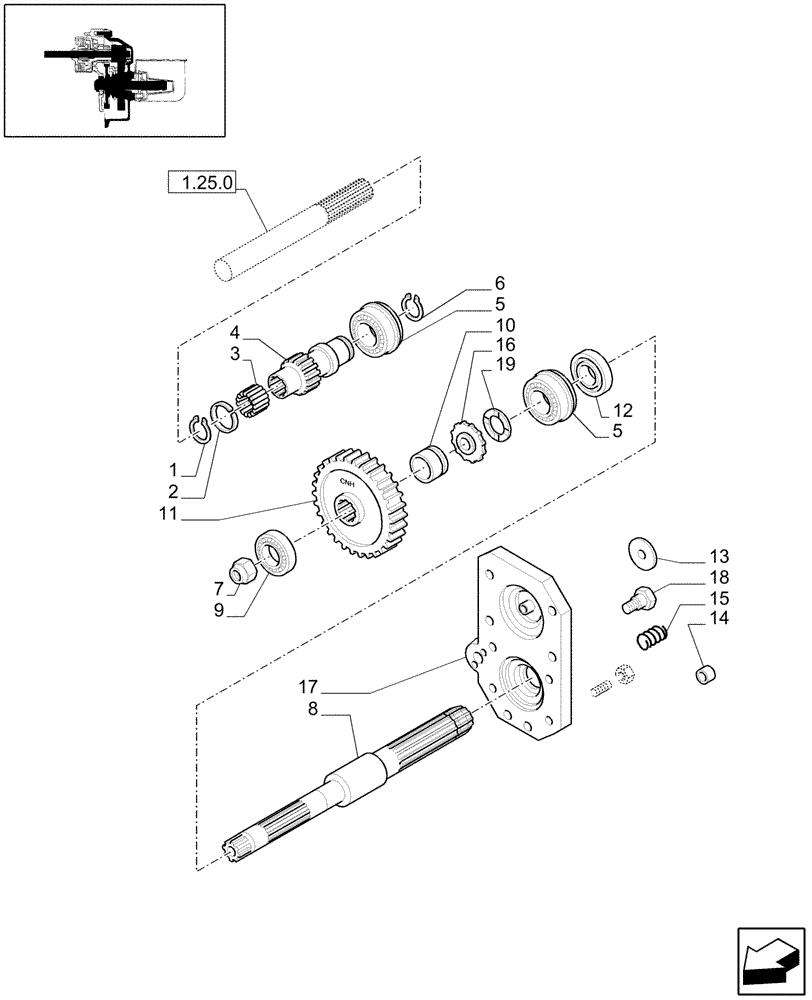

Запчасти Case IH JX1075C (1.80.1/06) - (VAR.007) NA PACKAGE- POWER TAKE OFF (07) - HYDRAULIC SYSTEM

1

11058076

SNAP RING,M22, Int

D=22, Serial Range: -1203043

1шт.

2

5142178

SNAP RING,1.5mm Thk

1шт.

3

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43x58x22

1шт.

4

47123687

SHAFT

1шт.

5

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x23

2шт.

6

11068876

SNAP RING,M40, Ext

1шт.

7

5122985

NUT,Ring, M32, 1.5 Pitch

M32

1шт.

8

5173440

SHAFT,M32 x 1.5 x 316.5mm L, 12T

1шт.

9

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

10

5175203

SPACER,38mm ID x 52mm OD x 46mm L

1шт.

11

47123682

GEAR,61T

1шт.

12

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

13

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

14

5180607

SPACER

1шт.

15

5180608

SPRING

1шт.

16

5173231

SPLINED RING

, Serial Range: -HJE029578

1шт.

16

87302766

DISC,38.1mm ID x 152mm OD x 1.5mm Thk

, Start Serial: HJE029579

1шт.

17

47133661

COVER

1шт.

18

47130774

PIN,13.5mm OD x 22mm L

1шт.

19

87341678

THRUST WASHER,38.1mm ID x 58mm OD x 2.5mm Thk

, Start Serial: HJE029579

1шт.
