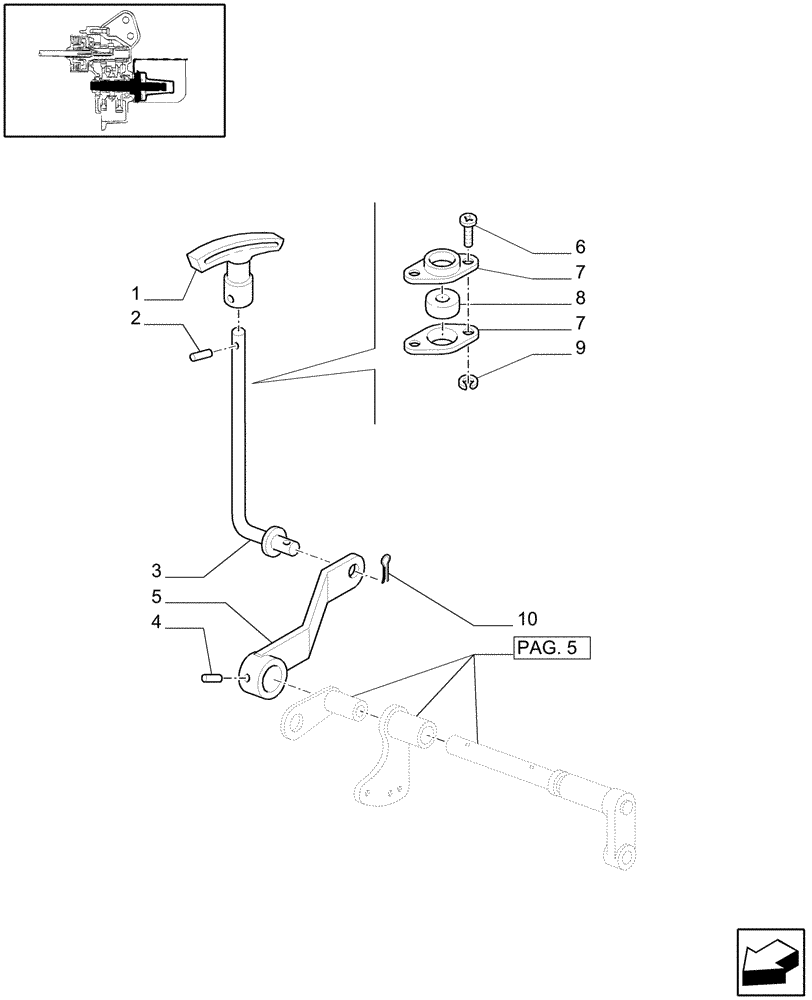

Запчасти Case IH JX1075C (1.80.1/03[06]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - ROD AND HANDLE (07) - HYDRAULIC SYSTEM

1

5112148

KNOB

1шт.

2

13904670

ROLL PIN,M4 x 20, Coiled

1шт.

3

5174805

TIE-ROD

1шт.

4

13910570

ROLL PIN,M6 x 36, Coiled

1шт.

5

5171130

LEVER

1шт.

6

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

7

5156494

FLANGE

2шт.

8

5109058

BUSHING,10.5mm ID x 25mm OD

D=10.5 x 25 x 16

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

10734301

COTTER PIN,M2 x 18

1шт.
