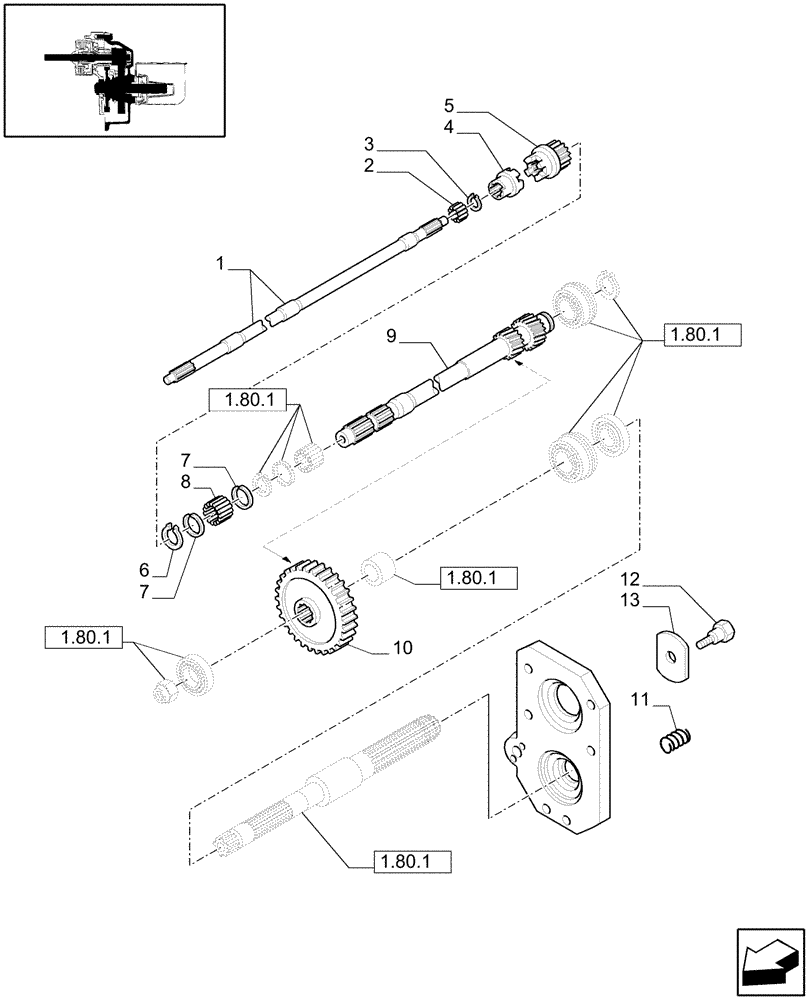

Запчасти Case IH JX1075C (1.80.1/02[01]) - (VAR.807) SYNCHRO MESH GEARED POWER TAKE-OFF (540 RPM) - SHAFT AND GEARS (07) - HYDRAULIC SYSTEM

1

5177718

SHAFT

1шт.

2

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15x21x16

1шт.

3

11067276

SNAP RING,M24, Ext

1шт.

4

5172083

COUPLING,10T

1шт.

5

5183818

SPLINED COUPLING,38mm ID x 71mm OD x 48.5mm L

1шт.

6

13398776

SNAP RING,M35, Int

1шт.

7

5173213

SNAP RING,1.5mm Thk, Int

2шт.

8

5173212

NEEDLE BEARING,Needle, 37mm ID x 52mm OD x 22mm W

37x52x22

1шт.

9

47123686

SHAFT

1шт.

10

47123682

GEAR,61T

1шт.

11

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

12

47130774

PIN,13.5mm OD x 22mm L

1шт.

13

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

14

47133661

COVER

1шт.
