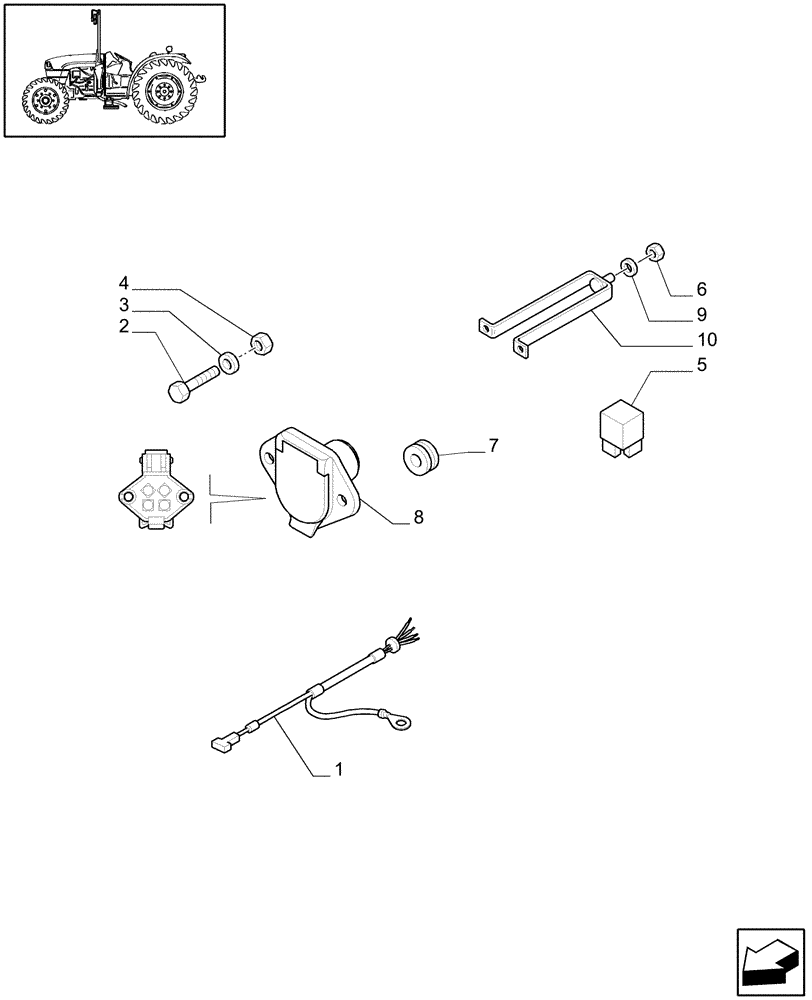

Запчасти Case IH JX1075C (1.75.4/03) - (VAR.738/1) ADDITIONAL POWER POINTS - NA (06) - ELECTRICAL SYSTEMS

1

5198034

ELECTRIC CABLE

40A, L/CAB, INCL. REF. 7, 8

1шт.

1

5195319

ELECTRIC CABLE

40A, W/CAB, INCL. REF. 7, 8, Serial Range: -HJE014285

1шт.

1

47136879

ELECTRIC CABLE

W/CAB, INCL. REF. 7, 8, Start Serial: HJE014286

1шт.

2

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

4

10794014

NUT,M4, Cl 8

2шт.

5

5190333

FUSE,40A, Maxi, Orange

40A, ORANGE

1шт.

6

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

7

10397780

INSULATING RING

1шт.

8

83982634

POWER SOCKET

4 POLE

1шт.

9

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

5185640

BRACKET

1шт.
