Запчасти Case IH JX1075C (1.75.0/07) - (VAR.065-066) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS

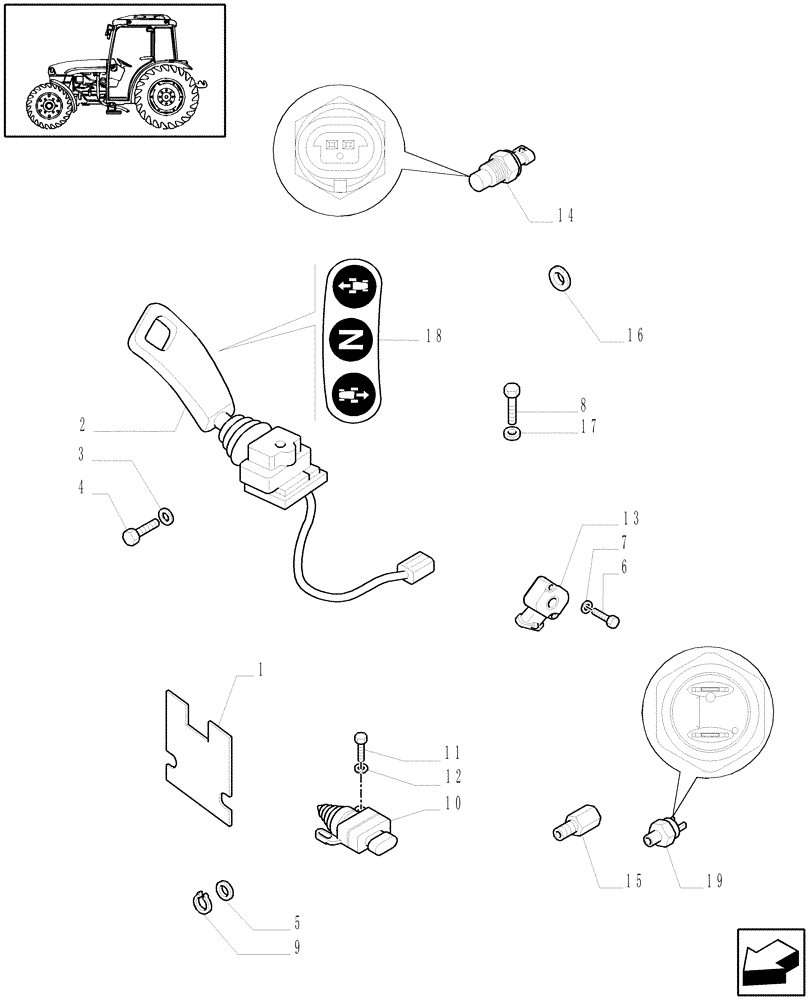

Схема запчастей Case IH JX1075C - (1.75.0/07) - (VAR.065-066) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS
14
16
11
7
17
3
9
1
2
4
19
10
13
18
12
5
8
15
6

Артикул

Название

Примечание

Количество

1

47125156

INSULATOR

1шт.

2

47056952

LEVER

1шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

4

14303124

HEX SOC SCREW,M4 x 14mm, Cl 8.8, Full Thd

3шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

2шт.

7

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

8

14303424

HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd

2шт.

9

87016950

SNAP RING,M7, Ext

1шт.

10

47137022

SWITCH

2шт.

11

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

12

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

13

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

14

82028133

SENSOR,3/8"-18

Transmission Temperature

1шт.

15

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

16

2852356

SEALING WASHER

14x20x1,5

1шт.

17

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4x9

2шт.

18

87364176

DECAL

1шт.

19

5157750

PRESSURE SWITCH

1шт.

Выбрано товаров: 20
