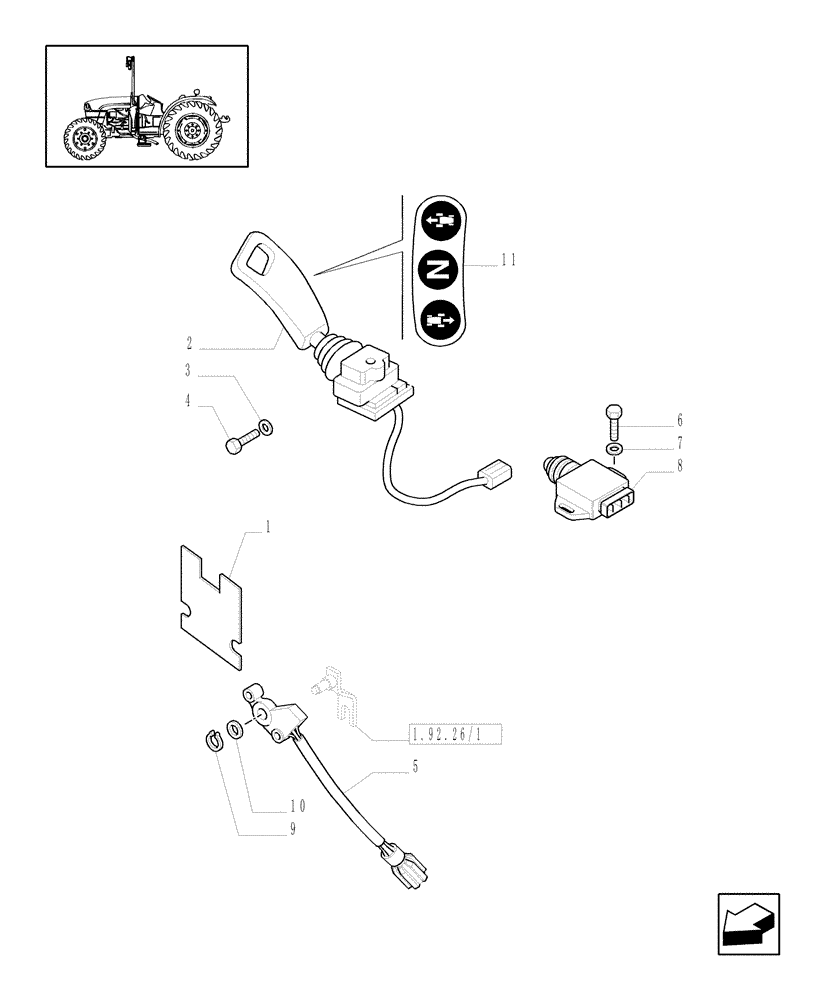

Запчасти Case IH JX1075C (1.75.0/01) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJ. COLUMN WITHOUT CAB - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS

1

47125156

INSULATOR

1шт.

2

82034515

SWITCH ASSY

Shuttle Lever

1шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

3

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4x9

2шт.

4

14303124

HEX SOC SCREW,M4 x 14mm, Cl 8.8, Full Thd

3шт.

4

14303424

HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd

2шт.

5

89821734

POTENTIOMETER

Differential Lock

1шт.

6

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

7

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

8

47137022

SWITCH

Diff. Lock, Snap Action

1шт.

9

87016950

SNAP RING,M7, Ext

1шт.

10

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

11

87364176

DECAL

1шт.
