(1.40.7/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN

Запчасти Case IH JX1075C (1.40.7/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING

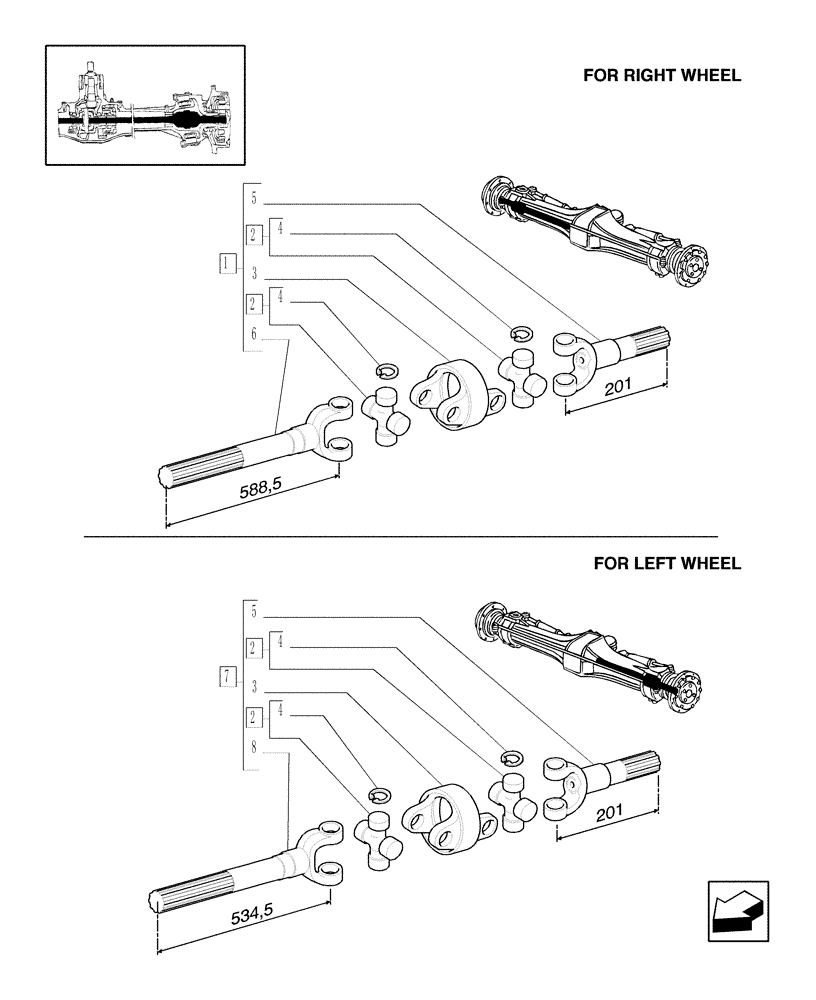

Схема запчастей Case IH JX1075C - (1.40.7/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING
7
2
2
8
3
2
1
5
4
4
4
3
5
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186661

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191024

SPIDER

4шт.

3

5191027

YOKE

2шт.

4

5191025

LOCKING RING

16шт.

5

5191419

YOKE

1шт.

6

5191421

YOKE

1шт.

7

5186660

ARTICULATED SHAFT

LH

1шт.

8

5191420

YOKE

1шт.

Выбрано товаров: 8
