Запчасти Case IH JX1075C (1.40.4/06[02]) - (VAR.324-324/1) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MECHANIK (40KM/H) - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

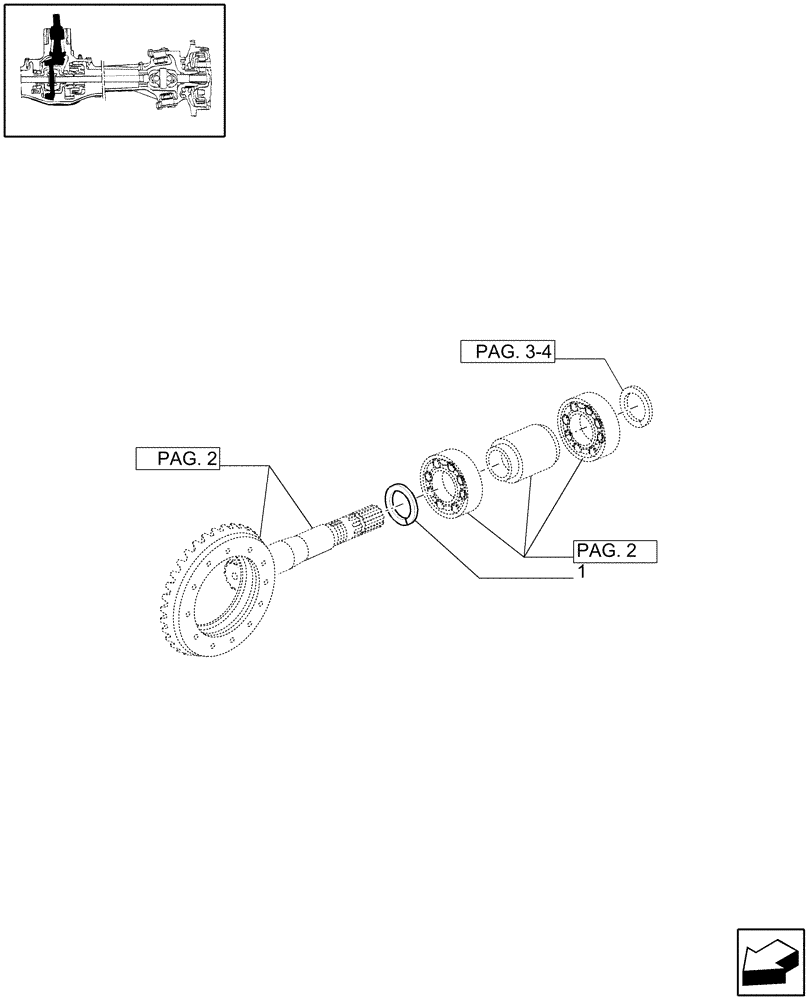

Схема запчастей Case IH JX1075C - (1.40.4/06[02]) - (VAR.324-324/1) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MECHANIK (40KM/H) - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING
1
pag. 2
pag. 3-4
pag. 2

Артикул

Название

Примечание

Количество

1

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

1

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

1

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

1

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

1

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

1

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

1

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

1

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

1

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

1

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

1

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

1

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

1

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

1

5087435

SHIM KIT

41.4x58

1шт.

Выбрано товаров: 14
