Запчасти Case IH JX1075C (1.40.1/05[01]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - HUB (04) - FRONT AXLE & STEERING

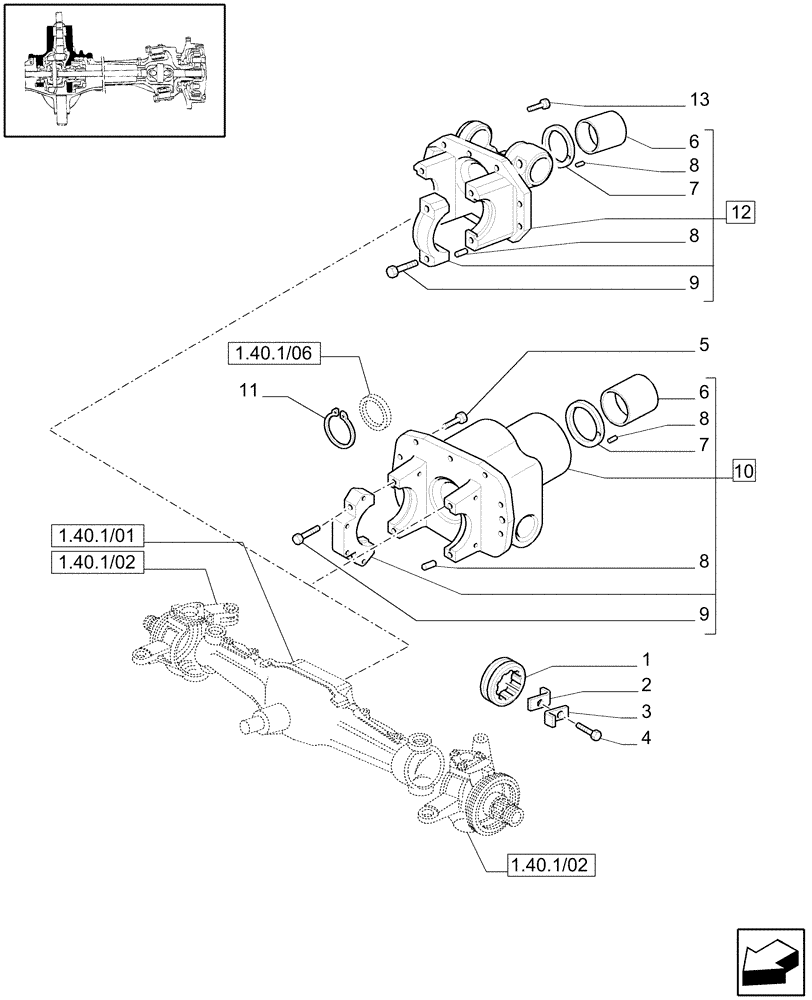

Схема запчастей Case IH JX1075C - (1.40.1/05[01]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - HUB (04) - FRONT AXLE & STEERING
1.40.1/06
8
7
9
8
3
7
8
1
1.40.1/01
1.40.1/02
12
4
6
5
9
8
1.40.1/02
2
11
6
10
13

Артикул

Название

Примечание

Количество

1

4966240

BEARING LOCK NUT,M95 x 2, 15T

ASSY

1шт.

2

4966243

ADJUSTING PLATE

1шт.

3

562659

PLATE

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

, Serial Range: -HJH055056

5шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

, Serial Range: -HJH055056

3шт.

5

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

, Serial Range: -HJH055056

1шт.

5

14275821

SCREW

M12x110, Serial Range: -HJH055056

1шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

5шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

9

14275521

SCREW,Hex, M12 x 1.25 x 80mm

M12x1.25x80

2шт.

10

5198485

SUPPORT

ASSY, Serial Range: -HJH055056

1шт.

11

11062476

SNAP RING,M90, Int

1шт.

12

87335147

SUPPORT

, Start Serial: HJH055057

1шт.

13

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12x1.5x120, Start Serial: HJH055057

2шт.

13

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.5x45, Start Serial: HJH055057

6шт.

13

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12x1.5x35, Start Serial: HJH055057

3шт.

Выбрано товаров: 19
