(1.33.2/06[01]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK - C5737

Запчасти Case IH JX1075C (1.33.2/06[01]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK - C5737 (04) - FRONT AXLE & STEERING

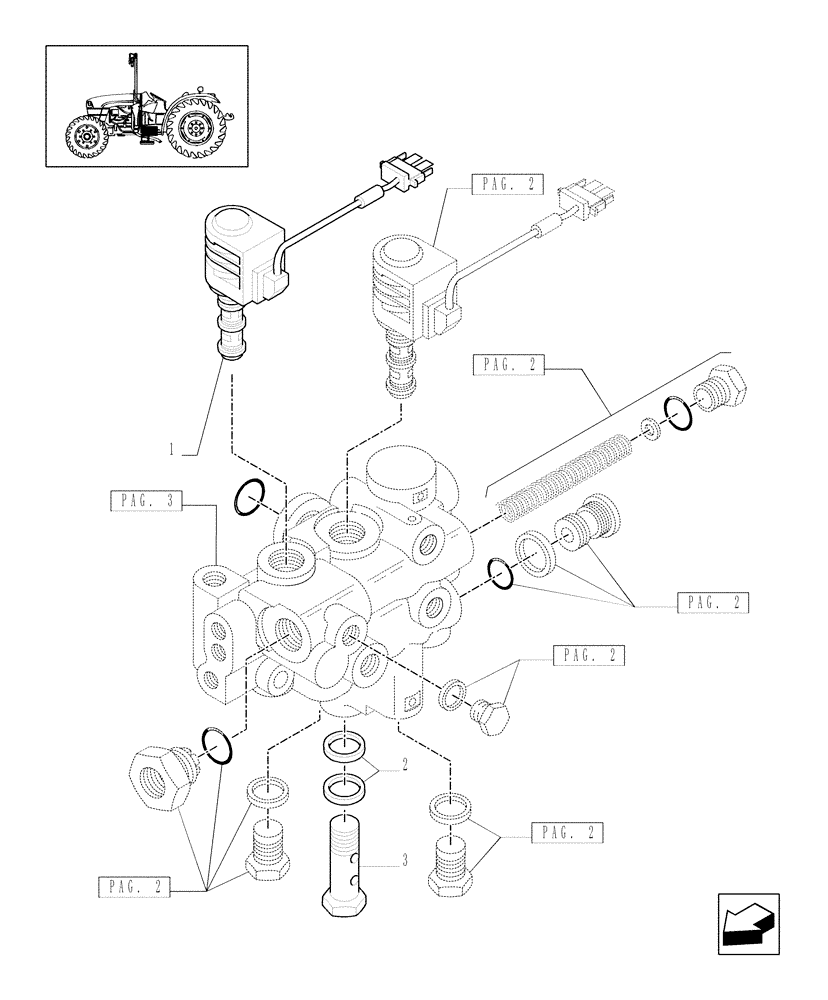

Схема запчастей Case IH JX1075C - (1.33.2/06[01]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK - C5737 (04) - FRONT AXLE & STEERING
2
1
pag. 2
3
pag. 2
pag. 2
pag. 2
pag. 2
pag. 2
pag. 3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

2

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

3

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.
