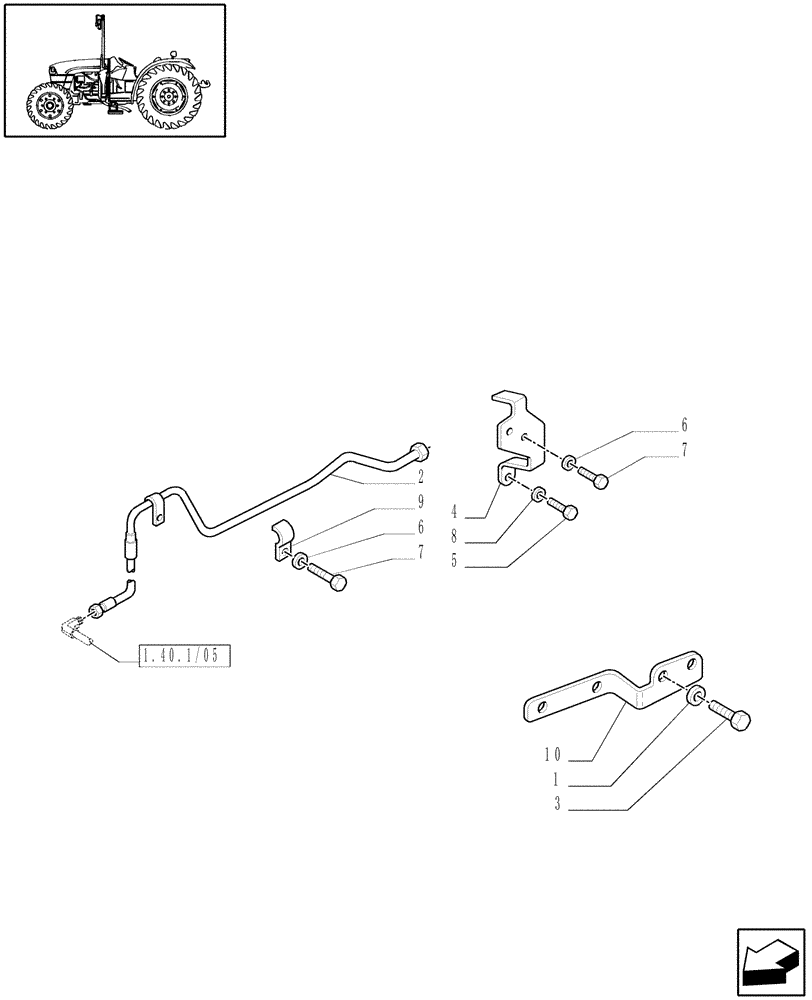

Запчасти Case IH JX1075C (1.32.6/04) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - (40 KM/H) - PIPES (03) - TRANSMISSION

1

10516474

LOCK WASHER

D=8

1шт.

2

47130378

RIGID TUBE

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

47134203

BRACKET

1шт.

5

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

6

10516674

LOCK WASHER,M8

2шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

7

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

8

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

1шт.

9

44903268

RETAINER COLLAR,12mm ID

1шт.

10

5180410

BRACKET

1шт.
