Запчасти Case IH JX1075C (1.32.6/01[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION

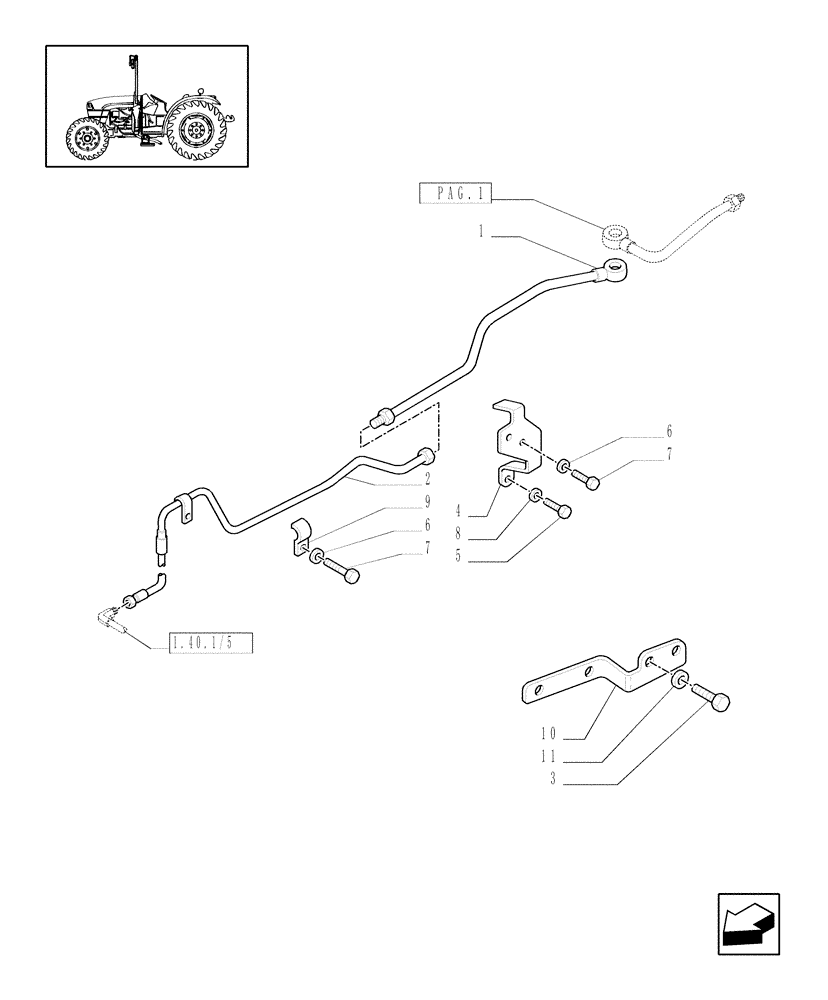

Схема запчастей Case IH JX1075C - (1.32.6/01[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION
11
3
6
1.40.1/5
5
6
pag.1
7
10
2
1
4
8
7
9

Артикул

Название

Примечание

Количество

1

5176162

RIGID TUBE

1шт.

2

47130378

RIGID TUBE

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

47134203

BRACKET

1шт.

5

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

7

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

8

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

D=16

1шт.

9

44903268

RETAINER COLLAR,12mm ID

1шт.

10

5180410

BRACKET

1шт.

11

10516674

LOCK WASHER,M8

1шт.

Выбрано товаров: 12
