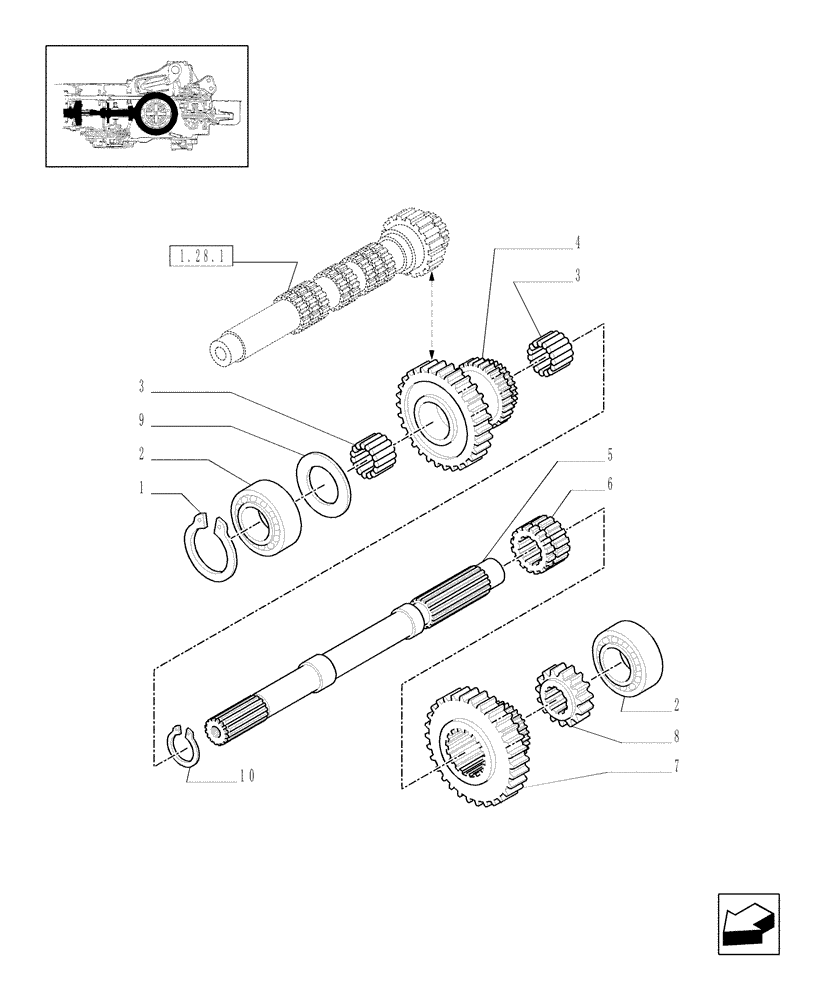

Запчасти Case IH JX1075C (1.32.1[03]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

80300633

SNAP RING,M80, Int

1шт.

2

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

2шт.

3

5168209

ROLLER BEARING,40mm ID x 48mm OD x 20mm W

40x48x20

2шт.

4

5187941

GEAR,47T / 25T

MED/LOW

1шт.

5

47132215

SHAFT,336mm

1шт.

6

5180744

DRIVE BUSHING,40T

MED/LOW

1шт.

7

5180745

GEAR,52T / 20T

LOW

1шт.

8

87384789

GEAR,28T

MED/HIGH

1шт.

9

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

10

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.
