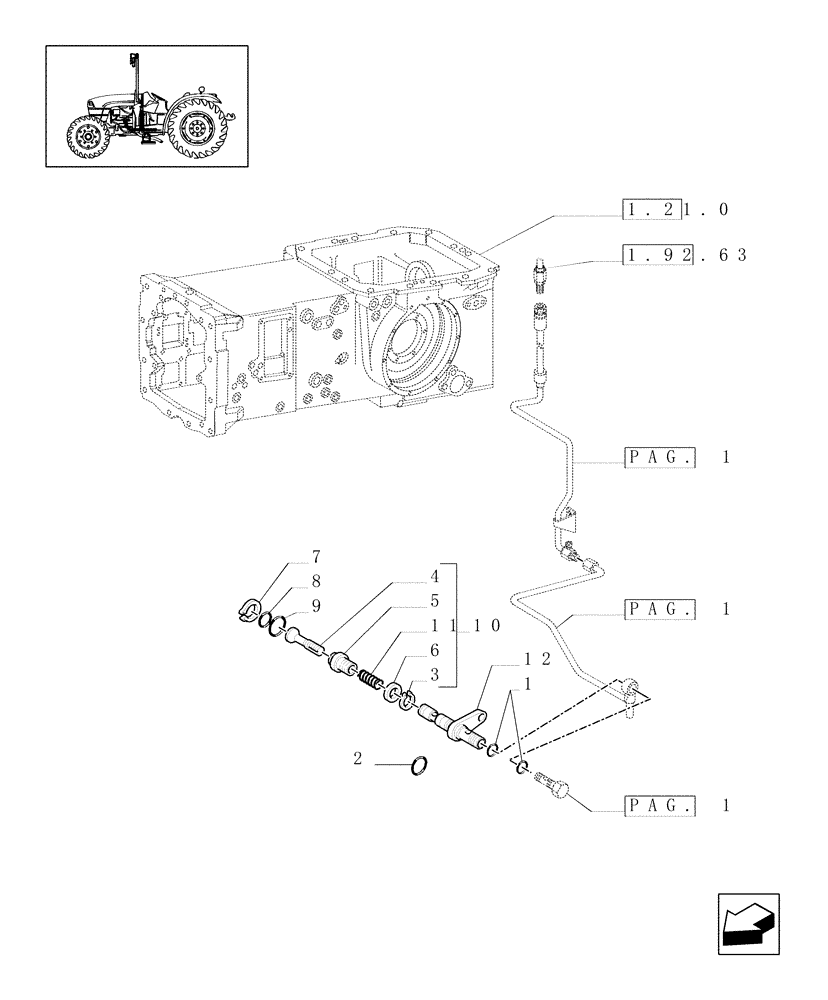

Запчасти Case IH JX1075C (1.28.8[02]) - GEAR LUBRICATION SYSTEM - C5723 (03) - TRANSMISSION

1

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

2

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

1шт.

3

5165486

CIRCLIP,9mm

1шт.

4

5165484

VALVE

1.78x14

1шт.

5

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

6

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

7

84021874

SNAP RING,M18, Ext

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

9

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

10

5180935

VALVE

1шт.

11

5180927

SPRING,13.1mm x 38mm

1шт.

12

5177778

BANJO BOLT

1шт.
