Запчасти Case IH JX1075C (1.28.7/02[03]) - (VAR.139-281) NA - 8X8 (30 KM/H) P.SHUTT. W/OIL COOLER - CLUTCH DISKS (03) - TRANSMISSION

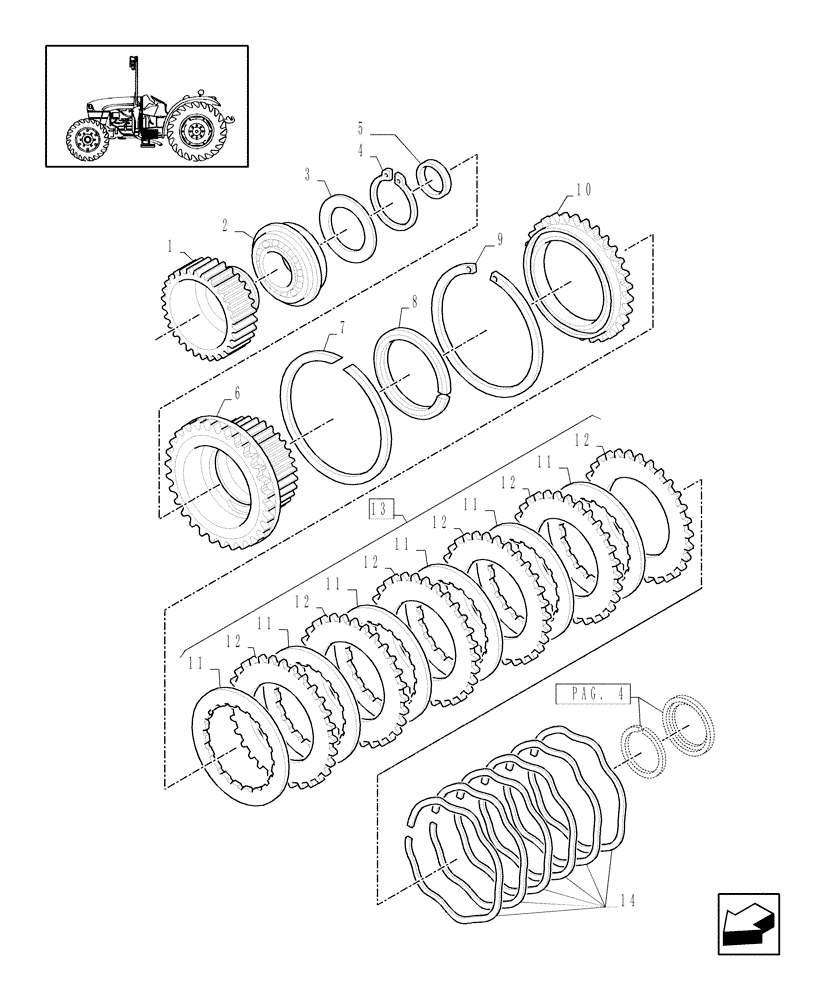

Схема запчастей Case IH JX1075C - (1.28.7/02[03]) - (VAR.139-281) NA - 8X8 (30 KM/H) P.SHUTT. W/OIL COOLER - CLUTCH DISKS (03) - TRANSMISSION
pag. 4
12
14
5
12
12
4
11
3
11
2
9
6
11
11
12
10
12
1
7
13
8
12
11
11

Артикул

Название

Примечание

Количество

1

5171654

HUB,45T / 18 T

1шт.

2

5168354

BALL BEARING,50mm ID x 80mm OD x 16mm W

1шт.

3

5171655

THRUST WASHER,50mm ID x 75mm OD x 1mm Thk

1шт.

4

5138419

SNAP RING,M50

1шт.

5

5197432

SEALING RING,3.53mm Thk x 34.52mm ID, 90 Duro

SEALRING 3.53x34.52

1шт.

6

5171664

HUB,50T / 45T

1шт.

7

5173675

SNAP RING,148.6mm ID x 156.6mm OD x 2.5mm Thk

1шт.

8

5177500

SEAL,Locking, 90.7mm ID x 100.5mm OD x 3.8mm Thk

SEALRING

1шт.

9

5162251

CIRCLIP,142.5mm ID

1шт.

10

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

1шт.

11

5154744

CLUTCH DRIVING PLATE

6шт.

12

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK 2 mm Thk

1шт.

12

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK 2.2 mm Thk

1шт.

13

5173750

KIT

1шт.

14

81864341

SPRING,148.35mm ID

6шт.

Выбрано товаров: 15
