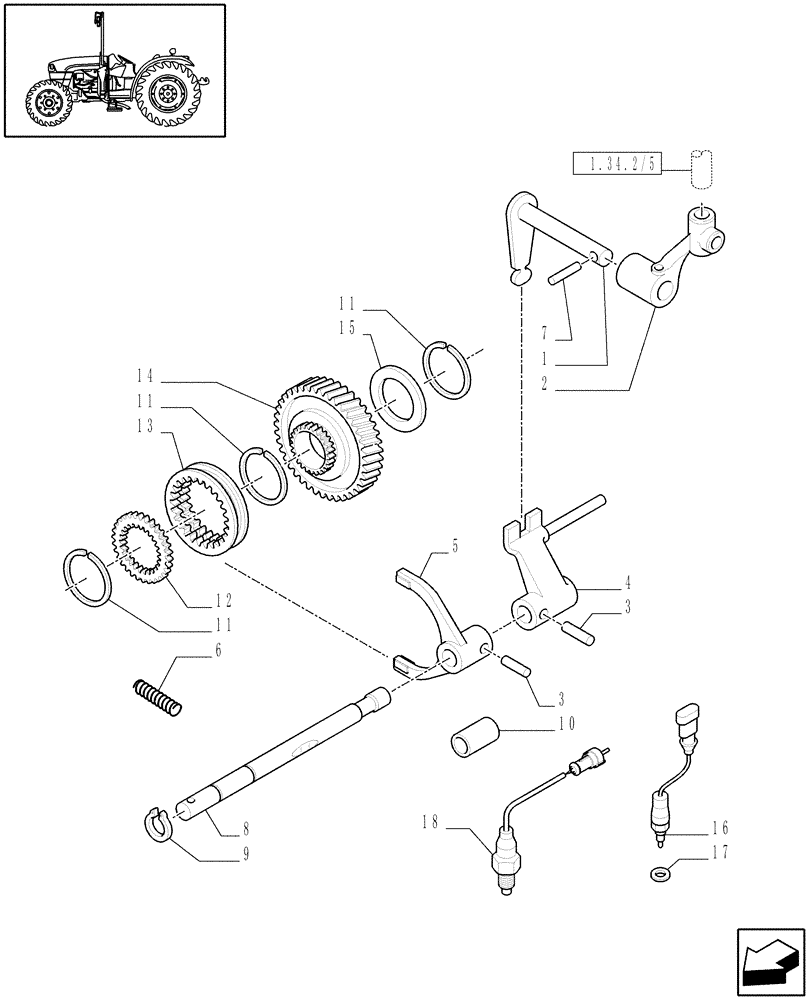

Запчасти Case IH JX1075C (1.28.1/08) - (VAR.117) CREEPER TRANSMISSION FOR HI-LO 44X16 (30KM/H) - ROD AND FORK (03) - TRANSMISSION

1

5178224

ROD,204.5mm L

1шт.

2

5184051

HUB

1шт.

3

13910370

ROLL PIN,6mm OD x 30mm L

3шт.

4

5178232

DOG

1шт.

5

5173116

YOKE,16mm Hole Dia

1шт.

6

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

7

86977791

LOCK PIN,M8 x 45, Slotted

1шт.

8

47130803

ROD,15.5mm OD x 352mm L

1шт.

9

13397776

SNAP RING,M16, Int

2шт.

10

5178225

SPACER,22mm ID x 28mm OD x 57mm L

22x28x57

1шт.

11

5168188

SNAP RING,1.5mm Thk, Ext

3шт.

12

5172883

GEAR,50T Internal / 75T External

1шт.

13

5173937

SLEEVE,68mm ID x 75mm OD x 21mm L

1шт.

14

5172888

DRIVEN GEAR,50T / 24T

1шт.

15

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

16

47132567

SWITCH

Black, Serial Range: -C5561

1шт.

17

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

18

87585979

SWITCH

Black, Start Serial: D5561

1шт.
