Запчасти Case IH JX1075C (1.28.1/05[02]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ. COLUMN - DRIVEN GEAR (03) - TRANSMISSION

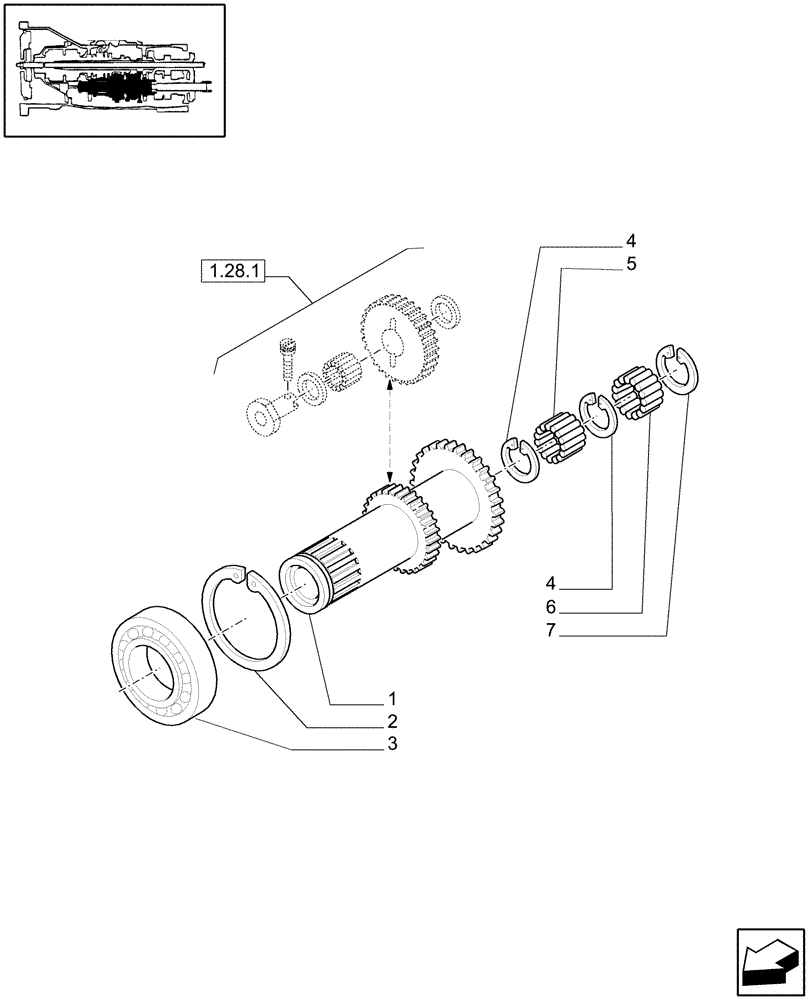

Схема запчастей Case IH JX1075C - (1.28.1/05[02]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ. COLUMN - DRIVEN GEAR (03) - TRANSMISSION
2
6
5
3
1.28.1
4
1
7
4

Артикул

Название

Примечание

Количество

1

5177504

GEAR,33T / 24T

REV/4th GEAR

1шт.

2

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

1шт.

3

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50x90x20

1шт.

4

5168199

SNAP RING,1.5mm Thk, Int

2шт.

5

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

25x33x20

1шт.

6

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35x40x27

1шт.

7

5168197

SNAP RING,1.5mm Thk, Int

1шт.

Выбрано товаров: 7
