Запчасти Case IH JX1075C (1.28.1/05[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ. COLUMN - CLUTCH SHAFT (03) - TRANSMISSION

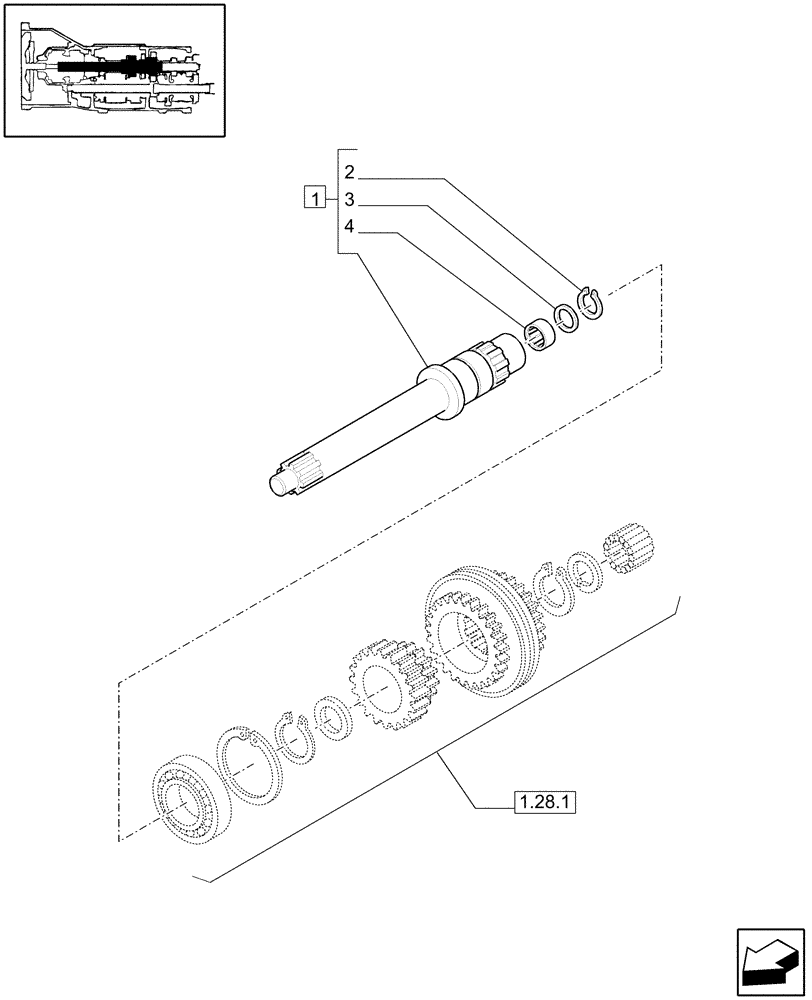

Схема запчастей Case IH JX1075C - (1.28.1/05[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ. COLUMN - CLUTCH SHAFT (03) - TRANSMISSION
4
2
1.28.1
1
3

Артикул

Название

Примечание

Количество

1

5177473

SHAFT

1шт.

2

5180152

CIRCLIP,27.8mm ID

D=32

1шт.

3

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

25x32x16

1шт.

4

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

25x32x16

1шт.

Выбрано товаров: 4
