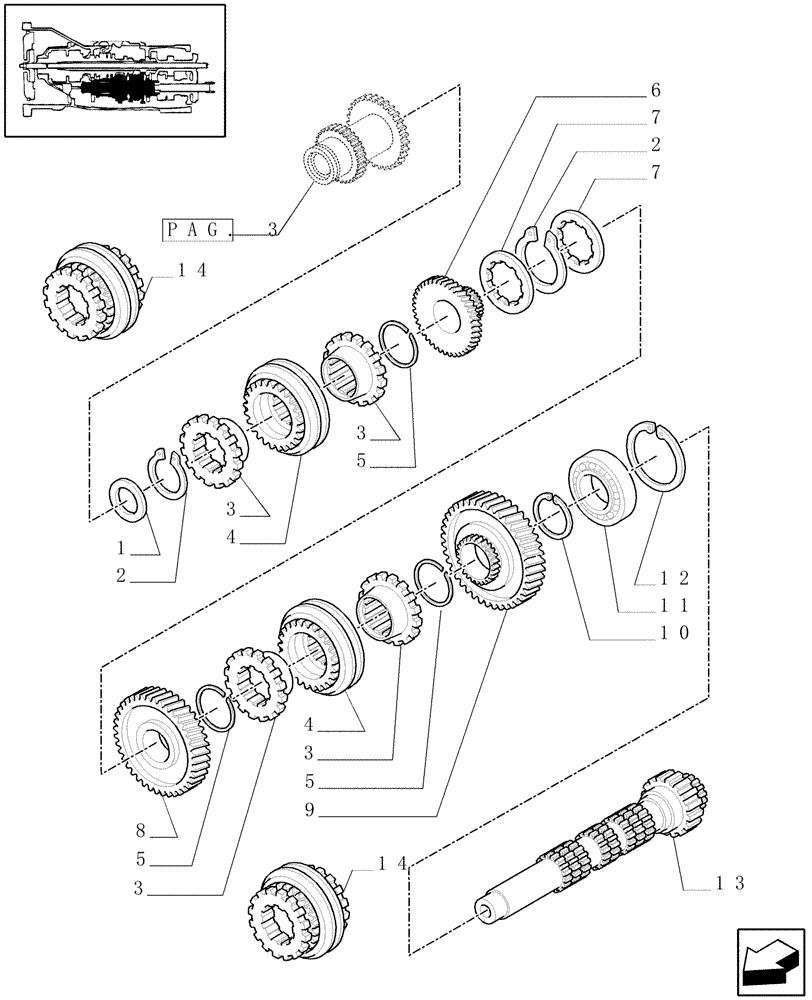

Запчасти Case IH JX1075C (1.28.1[04]) - TRANSMISSION GEARS (03) - TRANSMISSION

1

5172073

SHIM,0.5mm Thk

1шт.

1

5172074

SHIM,1mm Thk

1шт.

1

5172075

SHIM,1.5mm Thk

1шт.

1

5172076

SHIM,2mm Thk

1шт.

1

5179351

SHIM,0.75mm Thk

1шт.

1

5179352

SHIM,1.25mm Thk

1шт.

1

5179353

SHIM,1.75mm Thk

1шт.

1

5179354

SHIM,2.25mm Thk

1шт.

2

5123651

SNAP RING,36mm, External

2шт.

3

5183337

SYNCHRONIZER

, Serial Range: -C5575

4шт.

4

5197956

SYNCHRONIZER

D=68, Serial Range: -C5575

2шт.

5

5168195

SNAP RING,1.5mm Thk, Ext

3шт.

6

5172053

GEAR,40T

3RD GEAR

1шт.

7

5177039

THRUST WASHER,52mm OD x 2.5mm Thk, 12T

2шт.

8

5172054

GEAR,49T

2ND GEAR

1шт.

9

5176962

GEAR,56T

1ST GEAR

1шт.

10

5138419

SNAP RING,M50

D = 50

1шт.

11

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50x90x20

1шт.

12

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

1шт.

13

5175989

MAIN SHAFT,312.5mm

1шт.

14

87603953

SYNCHRONIZER

D=74, Start Serial: D5575

2шт.
