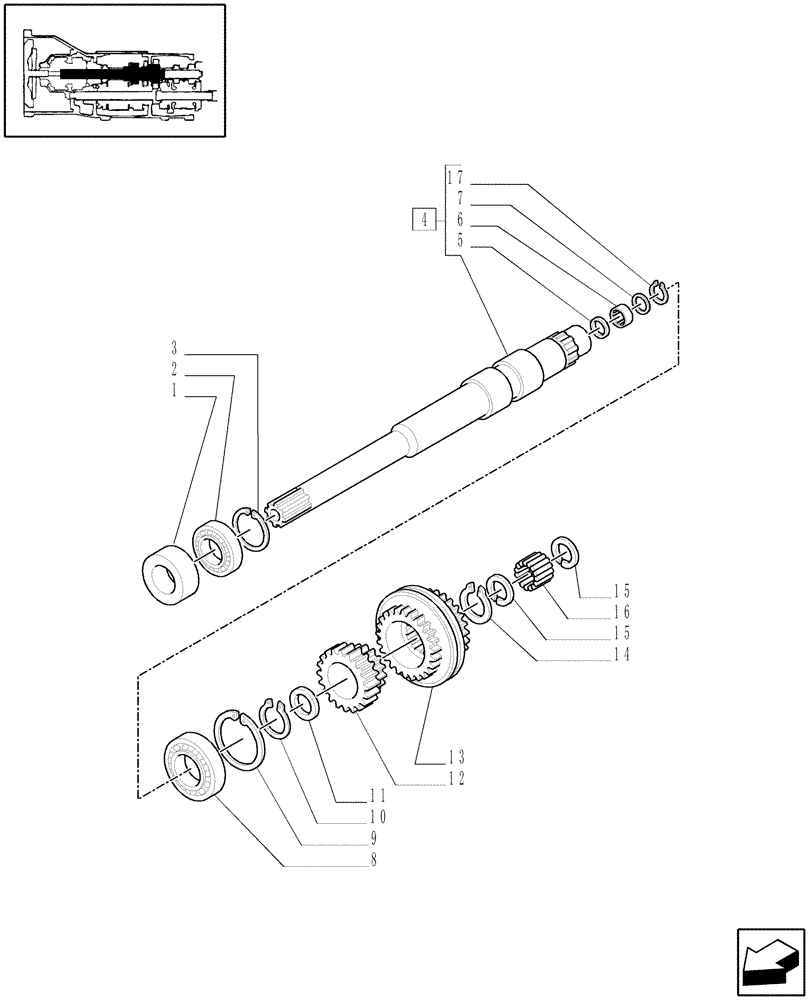

Запчасти Case IH JX1075C (1.28.1[01]) - TRANSMISSION GEARS (03) - TRANSMISSION

1

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12

1шт.

2

28042490

BALL BEARING

D=45x75x16

1шт.

3

11061676

SNAP RING,M75, Int

D=75

1шт.

4

5177056

MAIN SHAFT

ASSY

1шт.

5

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

6

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

7

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

8

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50x90x20

1шт.

9

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

1шт.

10

5168188

SNAP RING,1.5mm Thk, Ext

1шт.

11

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

12

5176906

GEAR,31T

1шт.

13

47125032

SYNCHRONIZER,82mm ID x 128mm OD x 42.9 mm L

D=82

1шт.

14

11069276

SNAP RING,M48, Ext

1шт.

15

5160929

SNAP RING,55.3mm OD x 1.5mm Width

D=53

2шт.

16

5168192

ROLLER BEARING,45mm ID x 53mm OD x 20mm W

45x53x20

1шт.

17

5180152

CIRCLIP,27.8mm ID

1шт.
