(1.27.7/07[01]) - (VAR.535) HYDRAULIC VALVE FOR COMBO COOLER FOR MECH. SHUTTLE AND CAB WITH A/C - PIPES

Запчасти Case IH JX1075C (1.27.7/07[01]) - (VAR.535) HYDRAULIC VALVE FOR COMBO COOLER FOR MECH. SHUTTLE AND CAB WITH A/C - PIPES (03) - TRANSMISSION

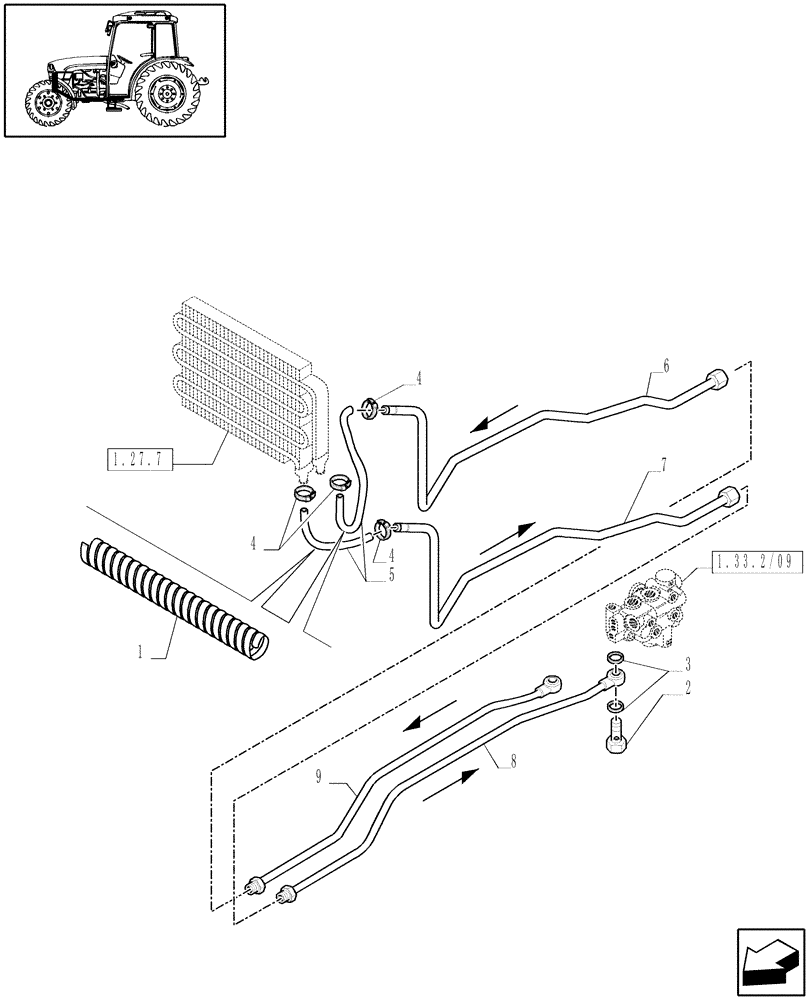

Схема запчастей Case IH JX1075C - (1.27.7/07[01]) - (VAR.535) HYDRAULIC VALVE FOR COMBO COOLER FOR MECH. SHUTTLE AND CAB WITH A/C - PIPES (03) - TRANSMISSION
2
7
4
8
6
1
4
1.33.2/09
1.27.7
5
4
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186848

FLEXIBLE HOSE

2шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

3

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

4шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

1500 MM

1шт.

6

87309468

RIGID TUBE

Delivery

1шт.

7

87309470

RIGID TUBE

Return

1шт.

8

5177868

RIGID TUBE

Return

1шт.

9

5177864

RIGID TUBE

Delivery

1шт.

Выбрано товаров: 9
