Запчасти Case IH JX1075C (1.27.7/04[02]) - (VAR.065/1-826) HYDRAULIC PUMP 64L/MIN WITH HEAT EXCHANGER - BRACKETS AND COLLARS (03) - TRANSMISSION

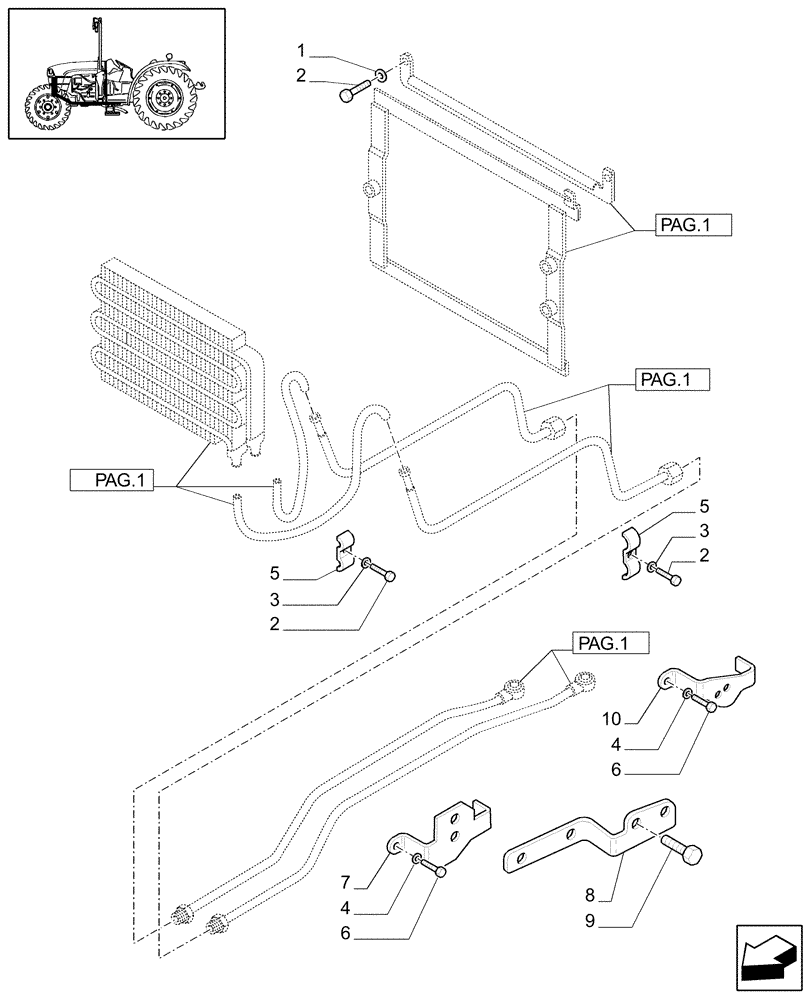

Схема запчастей Case IH JX1075C - (1.27.7/04[02]) - (VAR.065/1-826) HYDRAULIC PUMP 64L/MIN WITH HEAT EXCHANGER - BRACKETS AND COLLARS (03) - TRANSMISSION
a
7
5
g.1
2
6
p
3
4
p
a
p
2
a
1
5
10
9
p
g.1
g.1
a
3
g.1
2
8
4
6

Артикул

Название

Примечание

Количество

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

1

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

2

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

2шт.

3

10516474

LOCK WASHER

D=6

2шт.

4

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

5

5177880

CLAMP,14mm ID

2шт.

6

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

47134203

BRACKET

VAR.826

1шт.

8

5180410

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

10

5185434

BRACKET

VAR.065/1

1шт.

Выбрано товаров: 13
