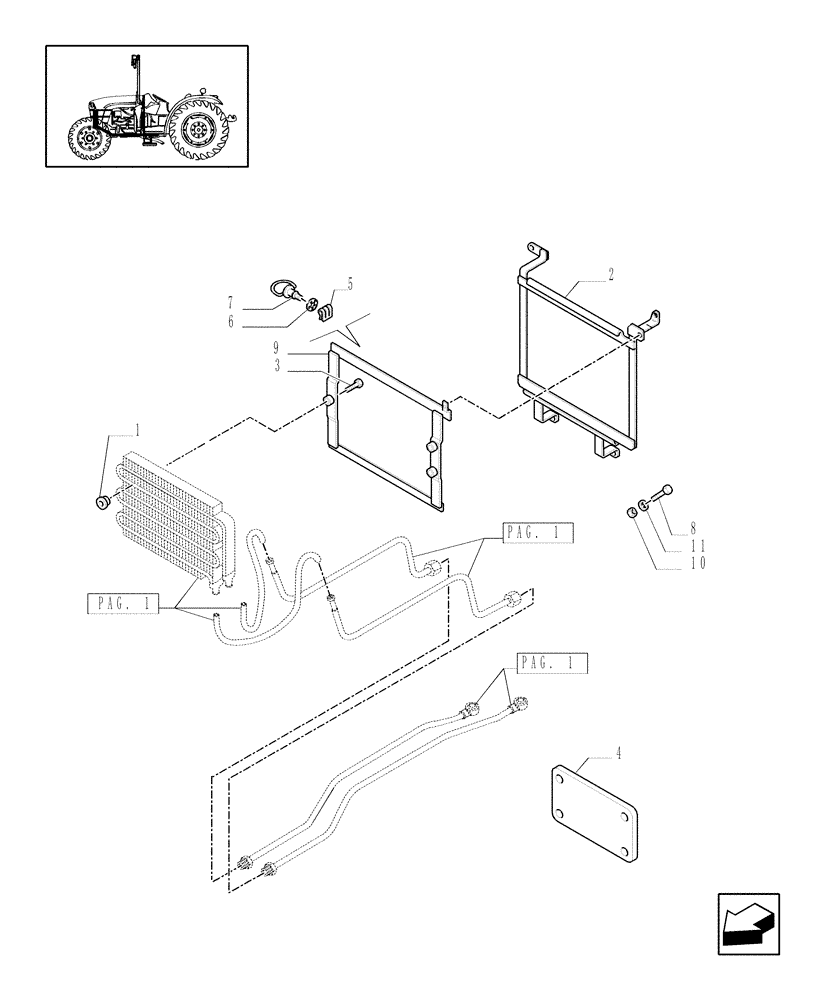

Запчасти Case IH JX1075C (1.27.7/01[03]) - (VAR.281) NA - 8X8 (30 KM/H) P.SHUTT. W/OIL COOLER FOR AIR CON. CAB. - RADIATOR SUPPORT (03) - TRANSMISSION

1

5175390

PAD

3шт.

2

5187012

SUPPORT

1шт.

3

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

3шт.

4

5183784

COVER PLATE

1шт.

5

82004582

CLIP,Square, 25mm

1шт.

6

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

7

82011199

STUD

1шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

9

5187018

SUPPORT

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
