Запчасти Case IH JX1075C (1.27.3/01[02]) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJUSTABLE COLUMN WITHOUT CAB - SOLENOID VALVES (03) - TRANSMISSION

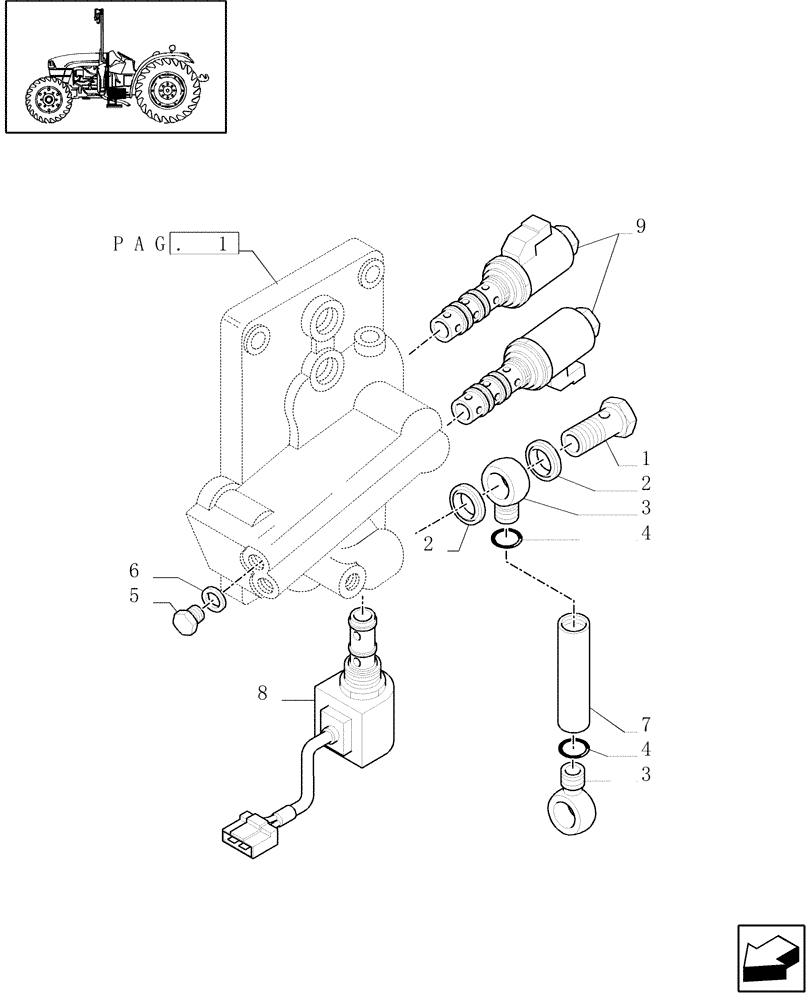

Схема запчастей Case IH JX1075C - (1.27.3/01[02]) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJUSTABLE COLUMN WITHOUT CAB - SOLENOID VALVES (03) - TRANSMISSION
3
4
3
2
8
2
pag. 1
5
6
4
1
7
9

Артикул

Название

Примечание

Количество

1

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

1шт.

3

5173682

BANJO BOLT,M9 x 30mm

2шт.

4

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

5

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

6

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

7

5173681

RIGID TUBE

1шт.

8

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

9

5168054

SOLENOID VALVE

Solenoid, Proportional Pressure

2шт.

Выбрано товаров: 9
