Запчасти Case IH JX1075C (1.25.0/05) - (VAR.275-275/1) HI-LO 32X16 (30KM/H) P. SHUTTLE W/OIL COOLER - CLUTCH (03) - TRANSMISSION

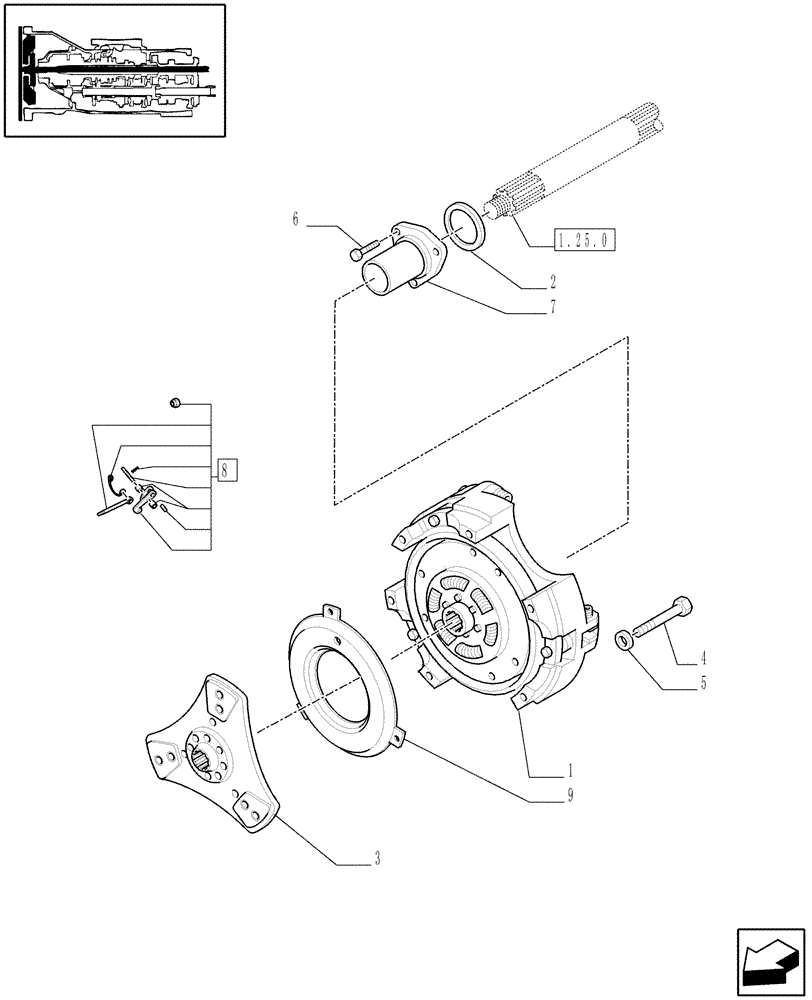

Схема запчастей Case IH JX1075C - (1.25.0/05) - (VAR.275-275/1) HI-LO 32X16 (30KM/H) P. SHUTTLE W/OIL COOLER - CLUTCH (03) - TRANSMISSION
6
1
3
1.25.0
7
5
2
4
8
9

Артикул

Название

Примечание

Количество

1

5196770

CLUTCH MECHANISM

Incl.8,9, Serial Range: -C4941

1шт.

JX1060C

1шт.

1

47134886R

REMAN-CLUTCH ASSY

Reman for new PN 5196770

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

47123372

CLUTCH

Incl.8,9, Serial Range: -C4941

1шт.

JX1070C,JX1075C

1шт.

1

47134886R

REMAN-CLUTCH ASSY

Reman for New PN 47134886

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

47134884

CLUTCH

Incl.8,9, Start Serial: D4941

1шт.

JX1060C

1шт.

1

47134884R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

1

47134884C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

47134886

CLUTCH,327mm OD

Incl.8,9, Start Serial: D4941

1шт.

JX1070C,JX1075C

1шт.

1

47134886R

REMAN-CLUTCH ASSY

JX1070C, JX1075C, Both ASN D4941

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Core-Clutch Assy Return Part Number, Start Serial: D4941

1шт.

JX1070C,JX1075C

1шт.

2

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

47134882

CLUTCH PLATE,280mm OD

PTO

1шт.

3

47134882R

REMAN-CLUTCH PLATE

JX1060C, JX1070C, JX1075C

1шт.

3

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

7

5177143

COVER

1шт.

8

5196791

KIT

, Serial Range: -C4941

1шт.

8

47137136

KIT

, Start Serial: D4941

1шт.

9

5196792

PRESSURE RING

1шт.

Выбрано товаров: 28
