Запчасти Case IH JX1075C (1.25.0[01]) - CLUTCH - MECHANICAL SHUTTLE - C4941 (03) - TRANSMISSION

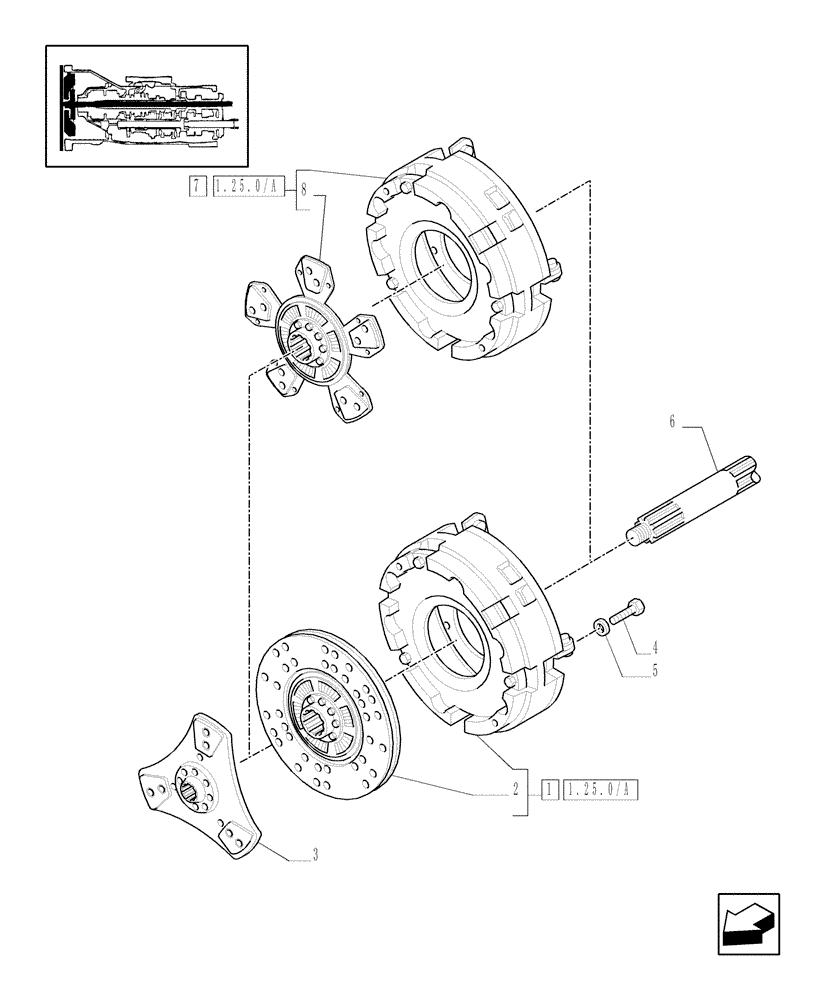

Схема запчастей Case IH JX1075C - (1.25.0[01]) - CLUTCH - MECHANICAL SHUTTLE - C4941 (03) - TRANSMISSION
5
6
2
7
4
1.25.0/a
1.25.0/a
1
8
3

Артикул

Название

Примечание

Количество

1

5196809

CLUTCH

JX1060C

1шт.

1

47134889R

REMAN-CLUTCH ASSY

JX1060C, BSN C4941, Reman For New P/N's 5196809 & 47134889.

1шт.

1

47134889C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

2

5182690

CLUTCH PLATE,280mm OD

JX1060C

1шт.

2

84589631R

REMAN-CLUTCH KIT

JX1060C (12/03), w/Mech. Shuttle, -C4941

1шт.

Kit includes: qty. 1 of- reman 3 pad clutch disc ref. #3, 1 reman clutch pressure plate ref. #1, 1 clutch bearings fig. 126.2(01), I flywheel bearing fig. 0.08.3, 1-instruction sheet

1шт.

2

84589631C

SERVICE KIT

Return Part Number (Note:use the shipping carton kit was received in to return core parts)

1шт.

3

47134882

CLUTCH PLATE,280mm OD

PTO

1шт.

3

47134882R

REMAN-CLUTCH PLATE

JXC1060C, JX1070C, JX1075C, All BSN - C4941

1шт.

3

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

5177717

SHAFT

1шт.

7

5196811

CLUTCH MECHANISM

JX1070C, JX1075C

1шт.

7

87732504R

REMAN-CLUTCH ASSY

JX1070C, JX1075C

1шт.

7

87732504C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

8

5196886

CLUTCH PLATE,280mm OD

JX1070C, JX1075C

1шт.

Выбрано товаров: 17
