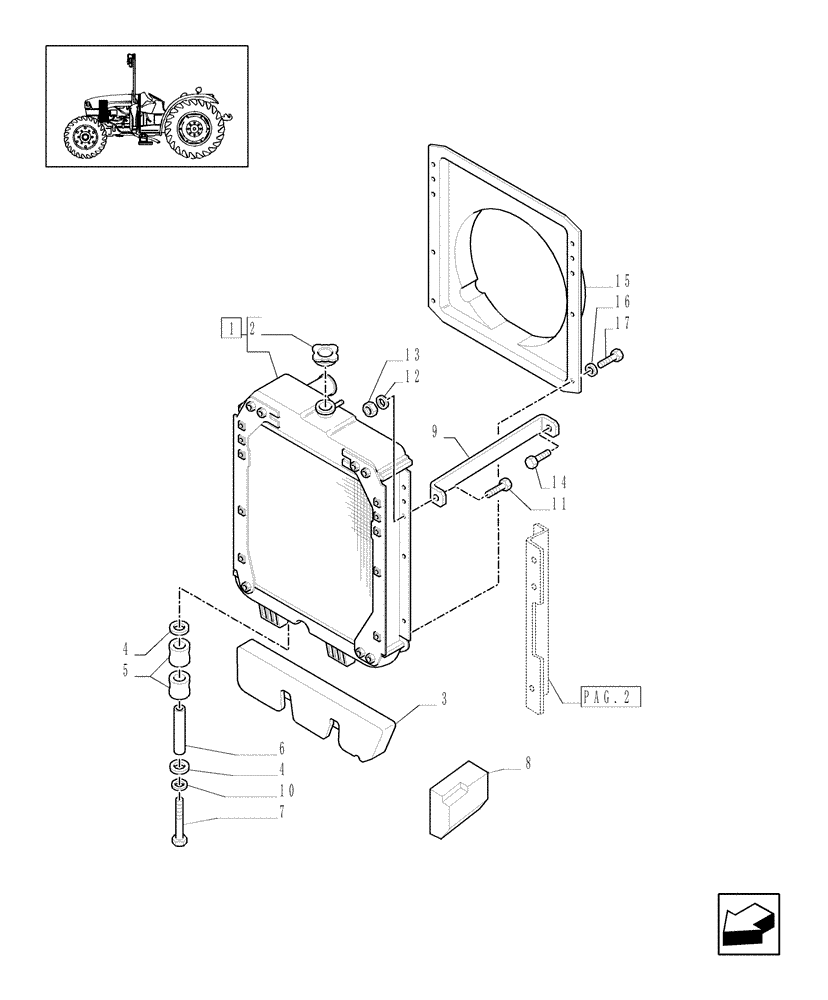

Запчасти Case IH JX1075C (1.17.0[01]) - RADIATOR & RELATED PARTS (02) - ENGINE EQUIPMENT

1

5172928

RADIATOR

ASSY

1шт.

2

4999682

RADIATOR CAP,Vented

1шт.

3

47131999

SEAL

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5108225

RUBBER MOUNTING

4шт.

6

5102703

SPACER,11mm ID x 15mm OD x 63mm L

11x15x63

2шт.

7

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

8

47132001

SEAL

1шт.

9

5176672

BRACKET

1шт.

10

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

1шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

14

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

15

5176669

GUARD

1шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

17

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

8шт.
