(21.118.010) - STD + VAR - 390110 - TRANSMISSION HOUSING, 12+12, SYNCHROSHUTTLE

Запчасти Case IH JX95HC PLUS (21.118.010) - STD + VAR - 390110 - TRANSMISSION HOUSING, 12+12, SYNCHROSHUTTLE (21) - TRANSMISSION

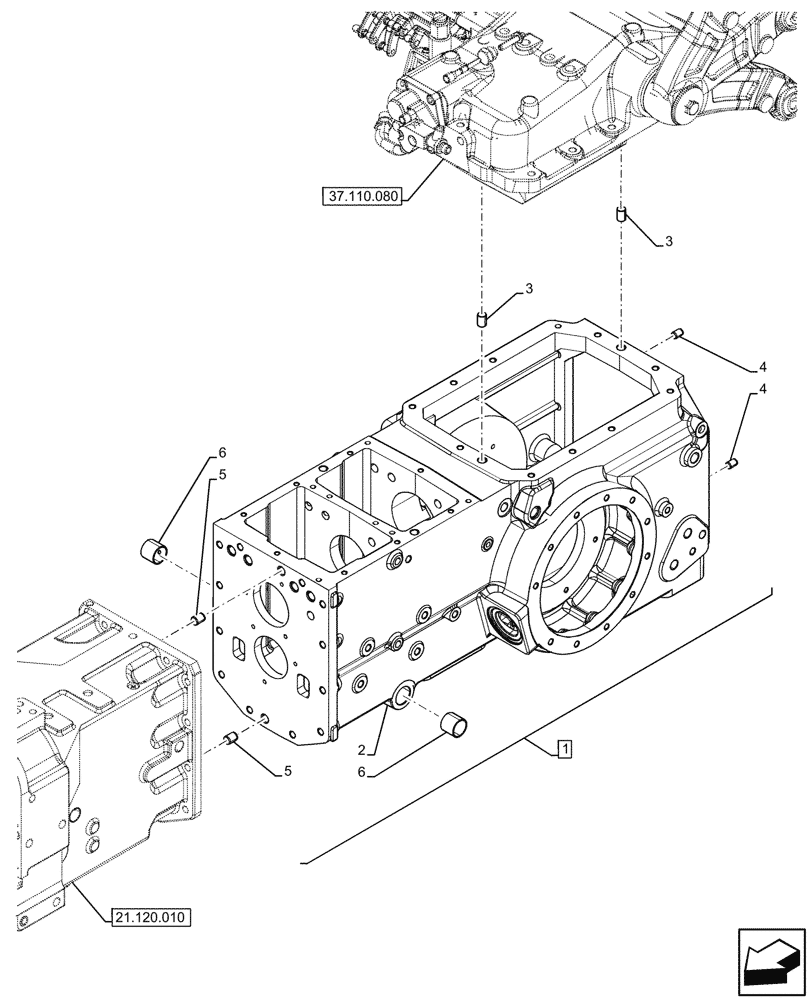

Схема запчастей Case IH JX95HC PLUS - (21.118.010) - STD + VAR - 390110 - TRANSMISSION HOUSING, 12+12, SYNCHROSHUTTLE (21) - TRANSMISSION
6
1
3
37.110.080
21.120.010
4
4
5
2
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84424257

TRANSMISSION HOUSING

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

5119529

DOWEL,15mm OD x 22mm L

2шт.

4

10839810

DOWEL,12mm OD x 18mm L

2шт.

5

10839910

DOWEL,15mm OD x 20mm L

2шт.

6

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

2шт.

Выбрано товаров: 6
