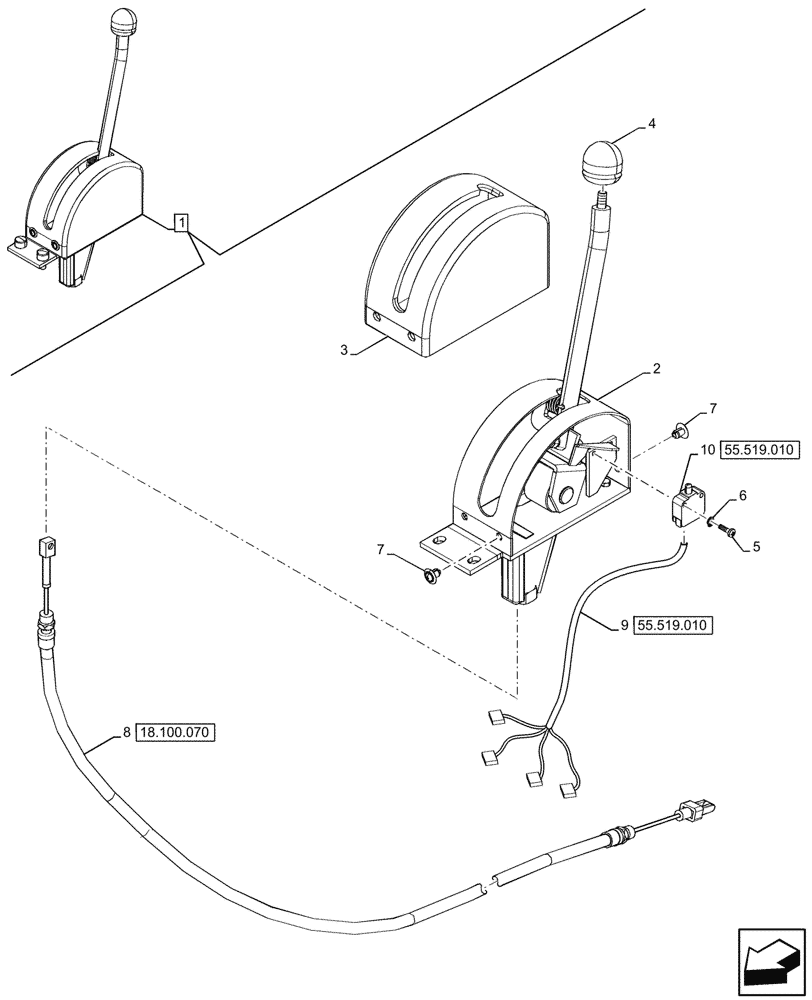

Запчасти Case IH JX95HC PLUS (18.100.060) - STD + VAR - 335113, 390110 - CLUTCH, PTO, CONTROL LEVER, COMPONENTS (18) - CLUTCH

1

84369157

CONTROL,1150mm L

ASSY, Incl 2 - 10

1шт.

2

84379901

LEVER

1шт.

3

5098019

COVER

1шт.

4

5171717

KNOB

1шт.

5

84327700

PIN,6mm OD x 27mm L

1шт.

6

11065476

SNAP RING,M6, Ext

1шт.

7

5098024

RIVET,6mm OD x 11mm L

4шт.

8

84342326

CABLE,1150mm L

1шт.

See Cable Components also in Figure 18.100.070

1шт.

9

84148267

ELECTRIC CABLE

PTO Switch

1шт.

See Electrical Cable Components also in Figure 55.519.010

1шт.

10

5093385

PUSH BUTTON SWITCH

1шт.

See Switch Components also in Figure 55.519.010

1шт.
