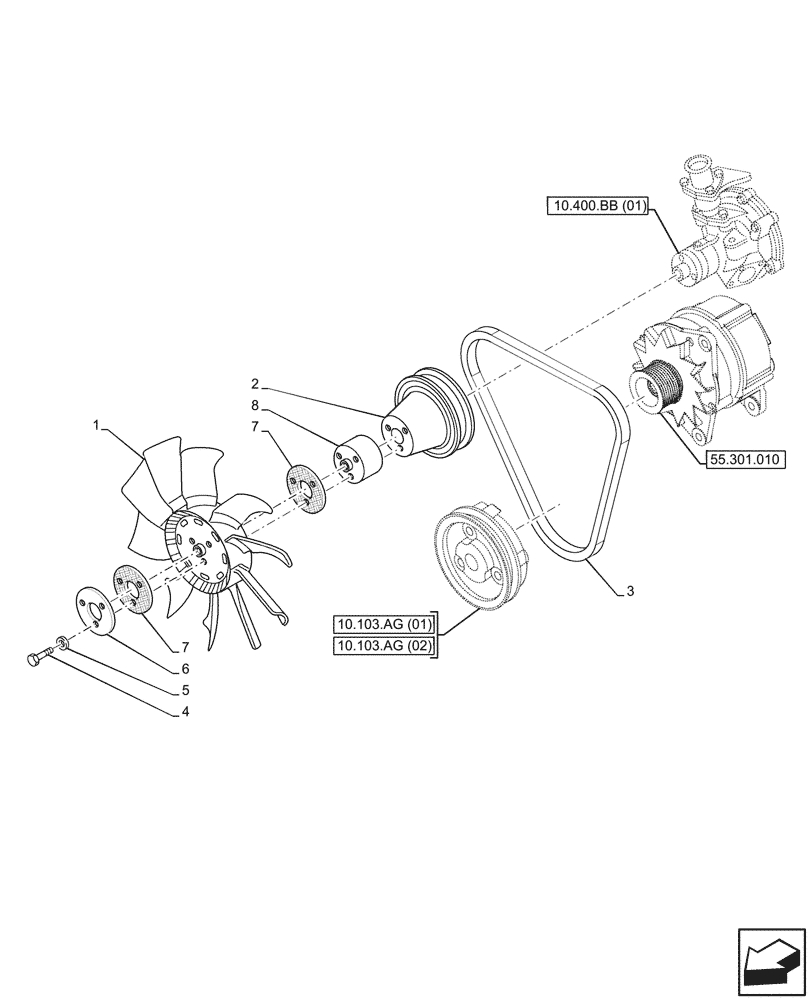

Запчасти Case IH JX95HC PLUS (10.414.020) - VAR - 391102 - FAN, PULLEY & BELT (10) - ENGINE

1

5099691

FAN,10 Blades, 448mm OD

1шт.

2

47838194

PULLEY

1шт.

3

5088081

V-BELT,17mm W x 1150.00mm L, 8 Ribs

2шт.

4

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

3шт.

5

11198079

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

3шт.

6

4584861

WASHER

1шт.

7

574526

WASHER

2шт.

8

84133112

SPACER

1шт.
