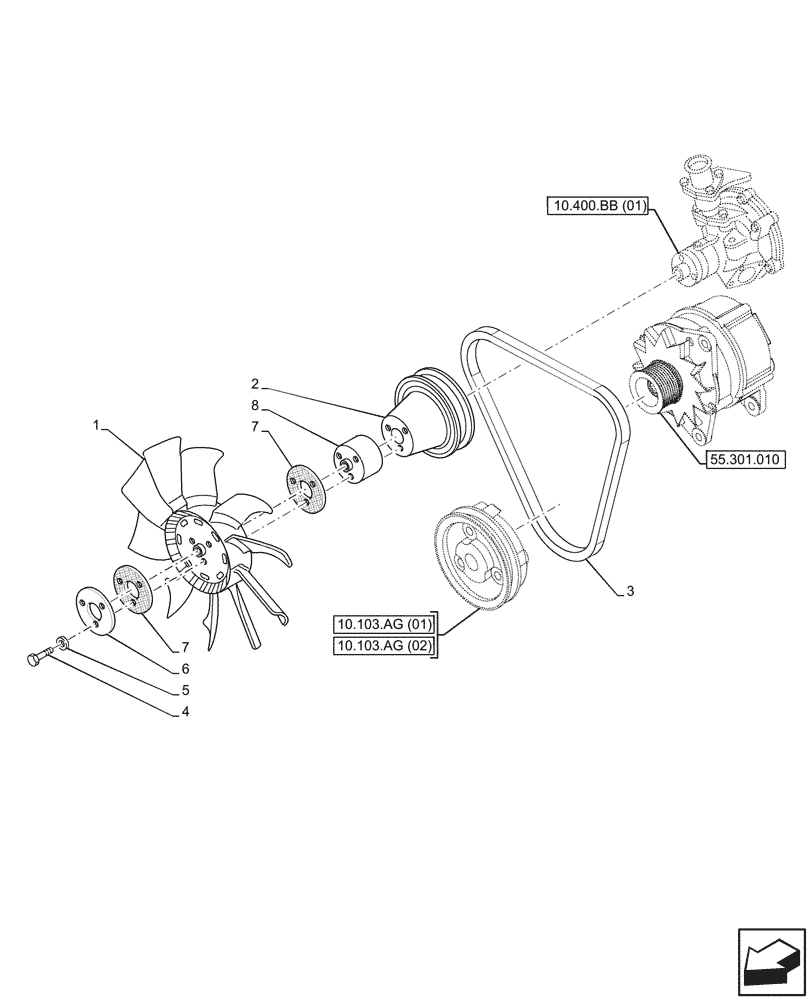

Запчасти Case IH JX95HC PLUS (10.414.010) - STD + VAR - 391102 - FAN, PULLEY & BELT (10) - ENGINE

1

5099691

FAN,10 Blades, 448mm OD

1шт.

2

5088008

PULLEY

1шт.

3

98473706

BELT, TRANSMISSION

1шт.

4

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

3шт.

5

11198079

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

3шт.

6

4584861

WASHER

1шт.

7

574526

WASHER

2шт.

8

84133112

SPACER

1шт.
