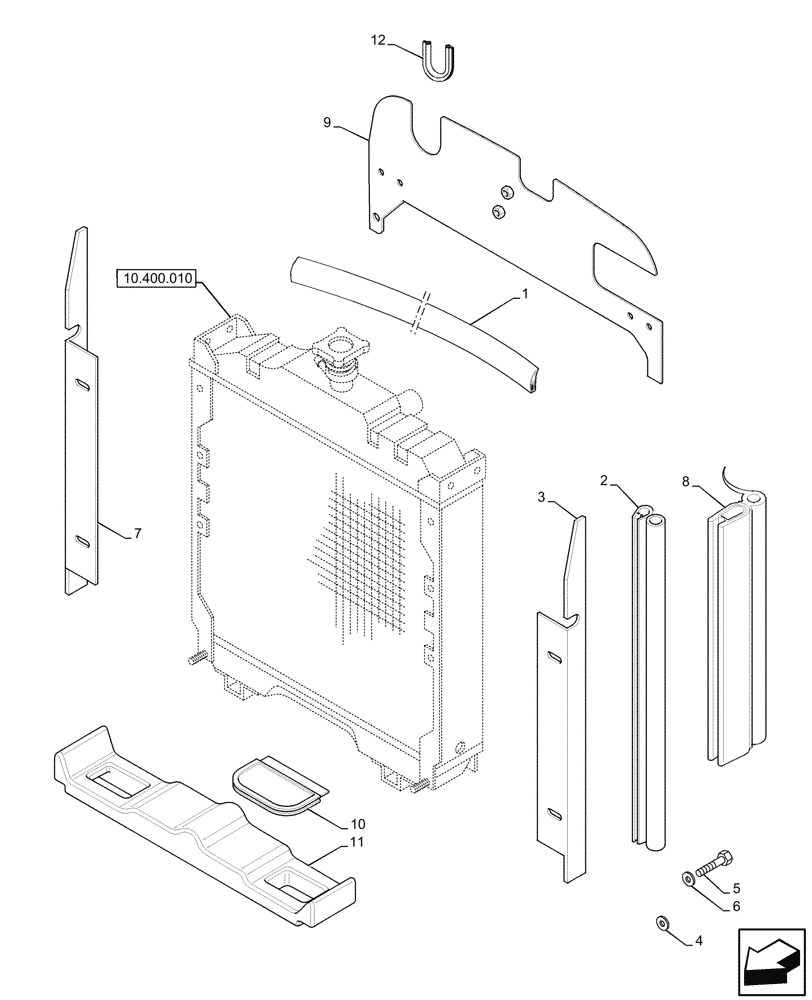

Запчасти Case IH JX95HC PLUS (10.400.070) - VAR - 390641 - RADIATOR, SEAL PROTECTION (10) - ENGINE

1

5083438

GASKET

1шт.

2

84216524

GASKET

2шт.

3

84216519

SUPPORT

LH

1шт.

4

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

4шт.

5

10977521

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

Hex, M 5.00 x 10.00 mm, Cl 8.8

4шт.

6

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 8.40 mm ID x 15.00 mm OD x 0.80 mm, 3.00 mm, CST, DAC

2шт.

7

84216521

SUPPORT

RH

1шт.

8

84137109

SEAL,270mm L

1шт.

9

84210783

PLATE

1шт.

10

84219236

GASKET

1шт.

11

84216870

INSULATOR,10mm W x 554mm L x 42mm Thk

1шт.

12

84137565

SEAL

1шт.
