(10.254.030) - EXHAUST SYSTEM, VERTICAL EXHAUST, W/ PROTECTION SHIELD, W/ DUST EJECTOR

Запчасти Case IH JX95HC PLUS (10.254.030) - EXHAUST SYSTEM, VERTICAL EXHAUST, W/ PROTECTION SHIELD, W/ DUST EJECTOR (10) - ENGINE

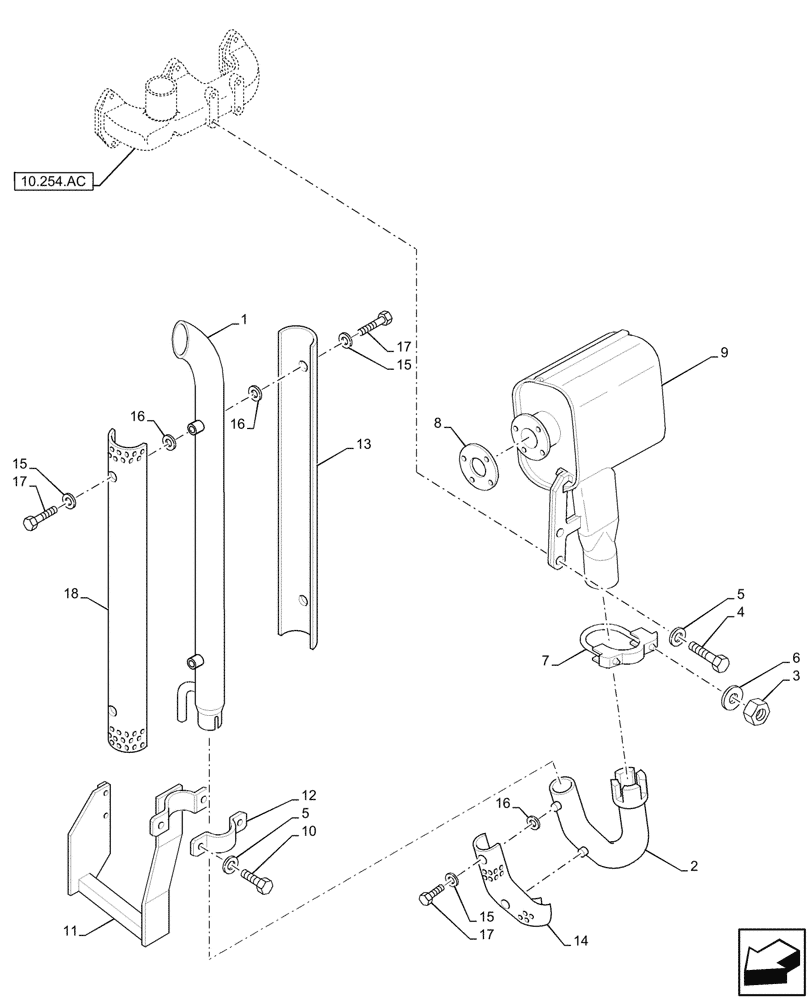

Схема запчастей Case IH JX95HC PLUS - (10.254.030) - EXHAUST SYSTEM, VERTICAL EXHAUST, W/ PROTECTION SHIELD, W/ DUST EJECTOR (10) - ENGINE
17
10
10.254.ac
2
9
18
3
11
6
8
15
1
16
16
17
14
15
7
5
5
4
12
15
16
13
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84380831

EXHAUST SYSTEM PIPE

Vertical, W/ Dust Ejector

1шт.

2

5095425

ELBOW

1шт.

3

12164711

NUT,M10 x 1.25, Cl 8

2шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

7

5097158

COLLAR,60mm ID

1шт.

8

98428399

GASKET

1шт.

9

5094825

MUFFLER

1шт.

10

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

11

5095406

SUPPORT

1шт.

12

84409237

COLLAR

1шт.

13

47471015

GUARD

Shield, Exhaust Vertical Pipe, L=1100mm

1шт.

14

5095426

SUPPORT

1шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

16

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

17

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

18

47471013

GUARD

Shield, Exhaust Vertical Pipe, L=1000mm

1шт.
